  15. PendantCntrlStn, DedEnd, 3Buttn, Blk/Rd/Wht

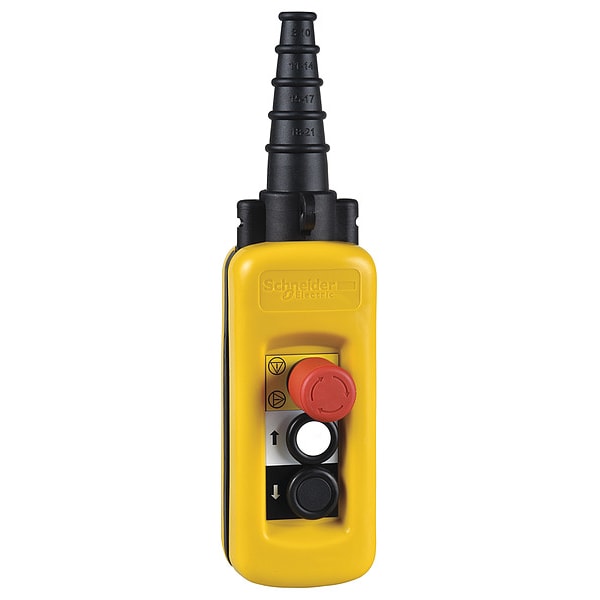

Schneider Electric PendantCntrlStn, DedEnd, 3Buttn, Blk/Rd/Wht XACA2813 - main

PendantCntrlStn, DedEnd, 3Buttn, Blk/Rd/Wht

  • Mfr # XACA2813

  • Zoro # G3465972

product price: $378.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Legend
1 Emergency Stop NC
Number of Pilot Lights
0
Type of Operator
Push Button
Number of Operators
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA2813
Zoro #
G3465972
UPC #
389110426816
Country of Origin
Czechia

Dimensions

Overall Width
3.15 in
Overall Height
15 in
Hub Size - Maximum
1 in
Overall Depth
3.55 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Pendant Control Station
Contact Form
1NO/1NC
Legend
1 Emergency Stop NC
Number of Pilot Lights
0
Type of Operator
Push Button
Number of Operators
3
Hub Style
Dead-End
Series
XACA
Standards
CCC, GOST
Housing Color
Yellow
Contact Rating
slow-break
Action
Maintained/Momentary/Momentary
Mechanical Interlock
Yes
Terminal Connection
screw clamp terminal
Application
control of single speed hoist motor
Voltage
600 V
Number of Speeds
1
Cable Entry
rubber sleeve with stepped entry 8-26 mm
IP Rating
IP65
Enclosure Color
Yellow
Housing Material
Polypropylene
Enclosure Material
Plastic
Operator Color
Black, Red, White
Product Type
Pendant Control Station
AC Contact Rating
1.2 A @ 600 V, 3 A @ 250 V
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Operator Configuration
(2) Push Buttons/Emergency Stop
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Maintained Action Release
Twist
NEMA Enclosure Rating
1, 4, 4X, 5
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Includes Mechanical Interlock
Mechanical Interlock Included
Hazardous Location Specification
Not Rated

Description

Pendant Control Station, Number of Operators 3, Number of Pilot Lights 0, Legend 1 Emergency Stop NC, Type of Operator Push Button, Action Maintained/Momentary/Momentary, Operator Color Black, Red, White, Contact Form 1NO/1NC, Mechanical Interlock Yes, IP Rating IP65, Enclosure Material Plastic, Enclosure Color Yellow, Standards CCC, GOST
