Shop MOLEX

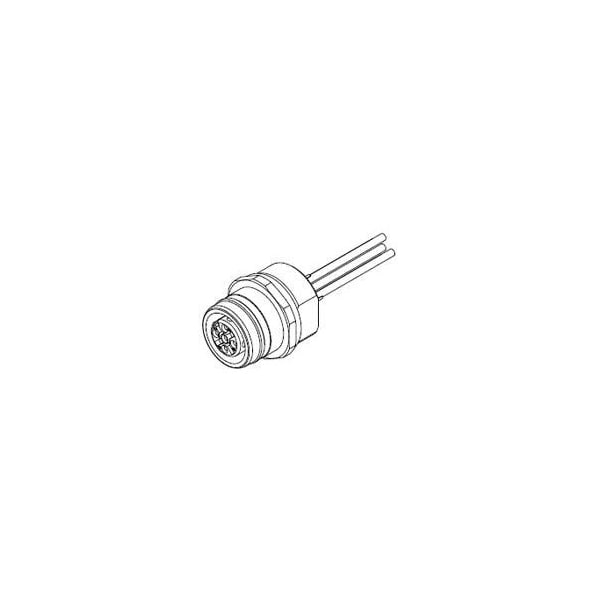

M12-RECEPT-5P-FEM-FR-M16-0.3M

  • Mfr # 1200845113

  • Zoro # G700442640

product price:
$
34.99
/ea
Sold in multiples of 3 for $104.97

Key Features

Product Type
M12
Wire Size
22 AWG
Maximum Voltage
250 V AC/DC
IP Rating
IP69K
Max. Amps
4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200845113
Zoro #
G700442640
UPC #
883906778965
Country of Origin
Unknown

Dimensions

Wire Size
22 AWG
Length
0.3 m
Mounting Thread Size
M16 x 1.5

Details

Item
Receptacle
Product Type
M12
Maximum Voltage
250 V AC/DC
IP Rating
IP69K
Max. Amps
4 A
Maximum Operating Temperature
90 Degrees C
Material
Brass
Max. Voltage
250V AC/DC
Standards
CSA LR6837
Type
Single Ended (pigtail)
Connector Type
Female
Series
120084
Sub-Category
Industrial Receptacles
Wire/Cable Type
UL 1569
Poles
5
Keyway
Single
NEMA Rating
NEMA 6
Coupling Type
Internal Thread
Voltage - Maximum
60V
Product Name
Ultra-Lock (M12)
Current - Maximum per Contact
4.0A
Panel Mount
Front
CSA
LR6837
Temperature Range - Operating
-25° to +85°C
Material - Component
Nickel-plated Brass
Orientation
Straight
