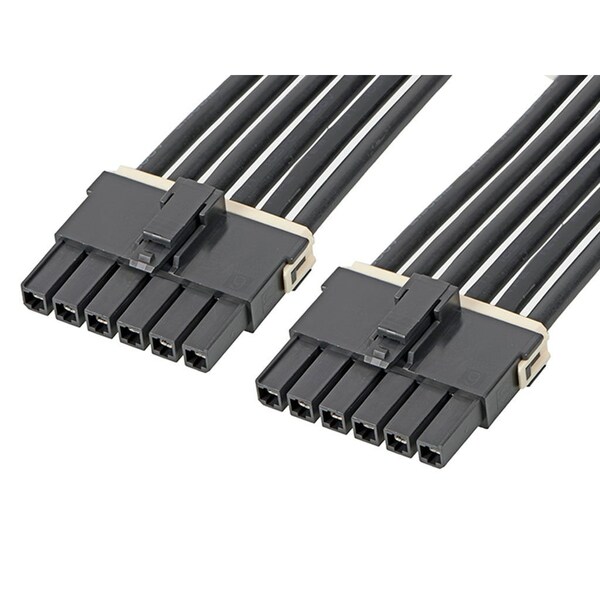

Mega-Fit Female-To-Mega-Fit Female Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length
Mfr # 2164001062
Zoro # G105925779
product price:Â
$
14.29
/ea
Sold in multiples of 10 for $142.90
Key Features
Cable Length
300.00mm
Circuits (Loaded)
6
Current - Maximum per Contact
25.0A
Material - Plating Mating
Tin
Number of Rows
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2164001062
- Zoro #
- G105925779
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 300.00mm
- Wire Insulation Diameter
- 4.06mm max.
- Wire Size AWG
- 12
Details
- Circuits (Loaded)
- 6
- Current - Maximum per Contact
- 25.0A
- Material - Plating Mating
- Tin
- Number of Rows
- 1
- Voltage - Maximum
- 600V AC (RMS)/DC
- Pitch - Mating Interface
- 5.70mm
- Lock to Mating Part
- Yes
- Material - Metal
- High Conductivity Copper
- Gender
- Female-Female
- Material - Plating Termination
- Tin
- Termination Interface: Style
- Crimp or Compression
- Material - Resin
- Nylon
- Wire/Cable Type
- UL 1015
