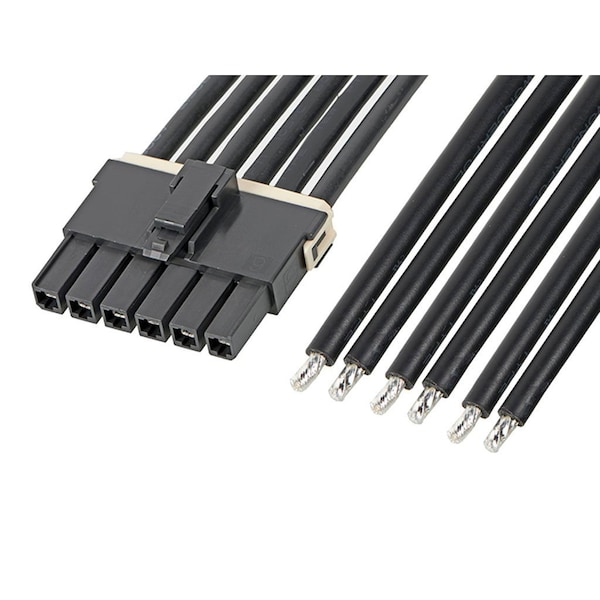

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length, Tin

Mfr # 2164011062
Zoro # G405926049

12.15

Sold in multiples of 10 for $121.50

Key Features

Cable Length

300.00mm

Type

Discrete Wire Assembly, High-Power Assembly

Series

216401

Application

Power, Wire-to-Board, Wire-to-Wire

Current - Maximum per Contact

25.0A

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2164011062
Zoro #: G405926049
UPC #: -
Country of Origin: India

Dimensions

Cable Length: 300.00mm
Wire Insulation Diameter: 4.06mm max.
Wire Size AWG: 12

Details

Type: Discrete Wire Assembly, High-Power Assembly
Series: 216401
Application: Power, Wire-to-Board, Wire-to-Wire
Current - Maximum per Contact: 25.0A
Material - Plating Termination: Tin
Lock to Mating Part: Yes
Circuits (Loaded): 6
Pitch - Mating Interface: 5.70mm
Single Ended: Yes
Material - Plating Mating: Tin
Wire/Cable Type: UL 1015
Number of Rows: 1
Termination Interface: Style: Crimp or Compression
Material - Metal: High Conductivity Copper
Material - Resin: Nylon
Voltage - Maximum: 600V AC (RMS)/DC
Gender: Female-Pigtail
Assembly Configuration: Single Ended Connector
Connector to Connector: Mega-Fit-to-Pigtail
Overmolded: No
Color - Resin: Black
Product Name: Mega-Fit

Description

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length, Tin Plated
