  9. Mega-Fit Ra Dr Th Hdr 30 Au 6Ckt

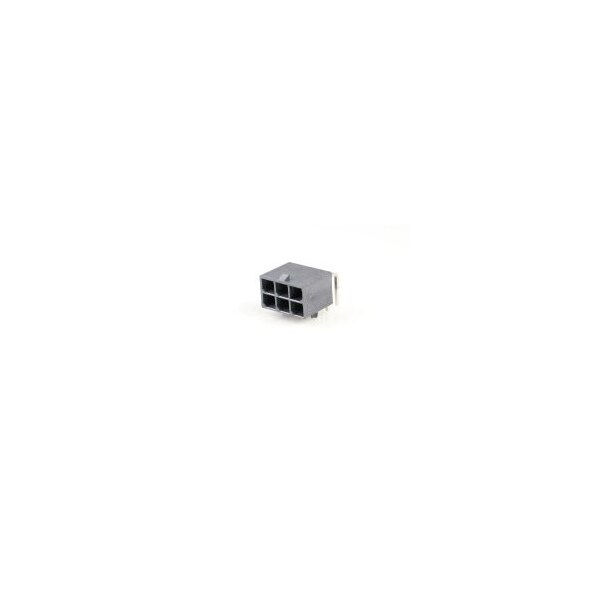

Molex Mega-Fit Ra Dr Th Hdr 30 Au 6Ckt 1720641006 - main

Mega-Fit Ra Dr Th Hdr 30 Au 6Ckt

  • Mfr # 1720641006

  • Zoro # G605909996

product price: $8.25
/ea
Sold in multiples of 850 for $7,012.50

Key Features

Color
Black
Number of Rows
2
Series
172064
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1720641006
Zoro #
G605909996
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.57mm, 2.36mm
Mated Height
16.78mm
Unmated Height
14.53mm

Details

Color
Black
Number of Rows
2
Series
172064
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
260°C
Features
Glow-Wire Capable; Surface Mount Compatible
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Hole Center to Center
5.7 mm
Number of Contacts
6
Current Rating
23.5 A
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Current - Maximum per Contact
23.5A
Material - Plating Mating
Gold
Temperature Range - Operating
-40° to +120°C
Polarized to Mating Part
Yes
Max-Duration
30
Glow-Wire Capable
Yes
Breakaway
No
Circuits (Loaded)
6
Component Type
PCB Header
Polarized to PCB
Yes
Material - Plating Termination
Tin
UL
E29179
Plating min - Mating
0.762µm
Shrouded
Yes
PCB Locator
Yes
Keying to Mating Part
Yes
First Mate / Last Break
No
Orientation
Right Angle
Pitch - Mating Interface
5.70mm
Max-Cycle
1
CSA
LR19980
Material - Metal
Copper
Lock to Mating Part
Yes
Max-Temp
260
PCB Retention
Yes
Flammability
94V-0
Product Name
Mega-Fit
Material - Resin
High Temperature Thermoplastic
