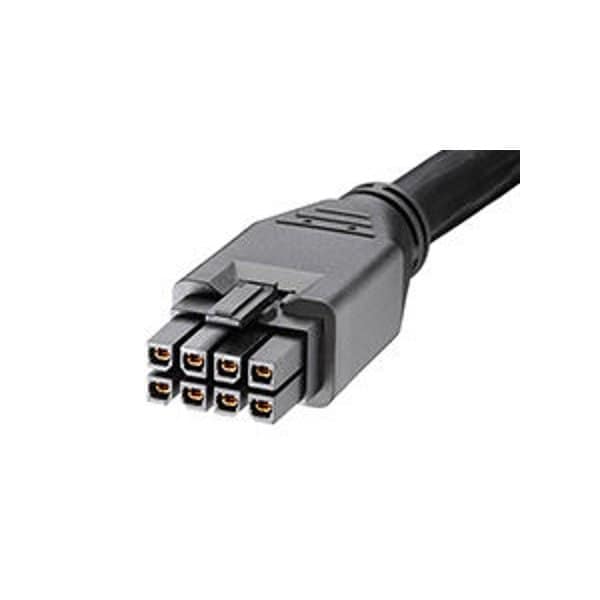

Mega-Fit-To-Mega-Fit Off-The-Shelf (Ots) Overmolded Cable Assembly, Dual Row

  • Mfr # 2451360820
  • Zoro # G405949185
product price:
$
59.69
/ea
Sold in multiples of 2 for $119.38

Key Features

Color
Black
Series
245136
Max. Voltage
300V AC
Application
Power, Wire-to-Board
Length
2 m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2451360820
Zoro #
G405949185
UPC #
-
Country of Origin
China
Color
Black
Series
245136
Max. Voltage
300V AC
Application
Power, Wire-to-Board
Material
PBT
Connector Type
Female-Female
Terminal Type
Crimp or Compression
Number of Contacts
8
Number of Rows
2
Type
Overmolded Assembly
Wire Range
12 AWG
Current Rating
18.4 A
Hole Center to Center
5.7 mm
Contact Finish
Gold Plated
Terminal Finish
Matte Tin Plated
Material - Metal
Copper Alloy
Wire/Cable Type
UL 2464
Connector to Connector
Mega-Fit-to-Mega-Fit
Current - Maximum per Contact
11.0A
Material - Resin
PBT
Single Ended
No
Plating min - Mating
0.381µm
Material - Plating Mating
Gold
Overmolded
Yes
Material - Plating Termination
Matte Tin
Lock to Mating Part
Yes
Pitch - Mating Interface
5.70mm
Assembly Configuration
Dual Ended Connectors
Circuits (Loaded)
8
Product Name
Mega-Fit

Dimensions

Length
2 m
Max. Insulation Dia.
13 mm
Contact Plating Thickness
0.381 µm
Wire Size (AWG)
12
Wire Insulation Diameter
13.00mm
Cable Length
2.0m
