  9. Megafit Slim Vert Hdr Assy 8 Ckt 15 Au

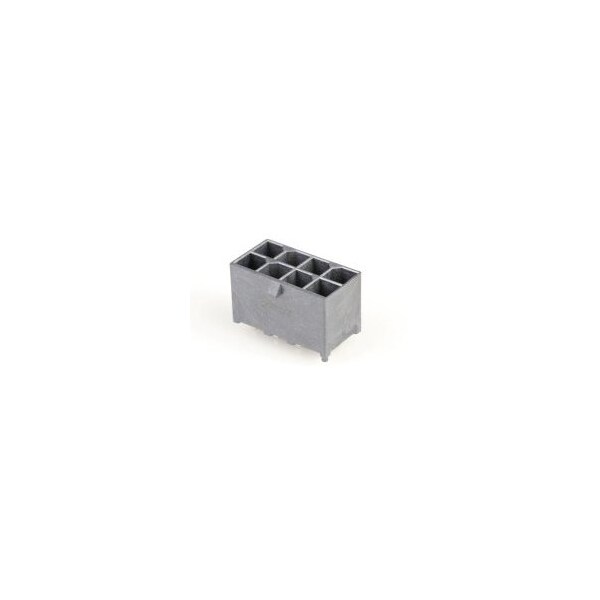

Molex Megafit Slim Vert Hdr Assy 8 Ckt 15 Au 1720650208 - main

Megafit Slim Vert Hdr Assy 8 Ckt 15 Au

  • Mfr # 1720650208

  • Zoro # G905910203

product price: $5.45
/ea
Sold in multiples of 20 for $109.00

Key Features

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1720650208
Zoro #
G905910203
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
3.73mm
Mated Height
16.78mm
Unmated Height
14.80mm
PCB Thickness - Recommended
1.58mm

Details

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Terminal Type
Through Hole
Max. Temp.
120°C
Material
Liquid Crystal Polymer
Features
Glow-Wire Capable; Surface Mount Compatible
Hole Center to Center
5.7 mm
Terminal Finish
Matte Tin Plated
Current Rating
23.5 A
Number of Contacts
8
Contact Finish
Gold Plated
Plating min - Mating
0.381µm
Product Name
Mega-Fit
Voltage - Maximum
600V AC (RMS)/DC
Component Type
PCB Header
Shrouded
Yes
Material - Plating Termination
Matte Tin
Pitch - Mating Interface
5.70mm
Breakaway
No
Durability (mating cycles max)
200
Material - Resin
Liquid Crystal Polymer
First Mate / Last Break
No
Current - Maximum per Contact
23.5A
PCB Retention
Yes
Polarized to Mating Part
Yes
Glow-Wire Capable
Yes
PCB Locator
Yes
Material - Metal
High Conductivity Copper
Circuits (Loaded)
8
Polarized to PCB
Yes
Flammability
94V-0
Keying to Mating Part
Yes
Lock to Mating Part
Yes
UL
E29179
Orientation
Vertical
Temperature Range - Operating
-40° to +120°C
Material - Plating Mating
Gold
