Shop MOLEX

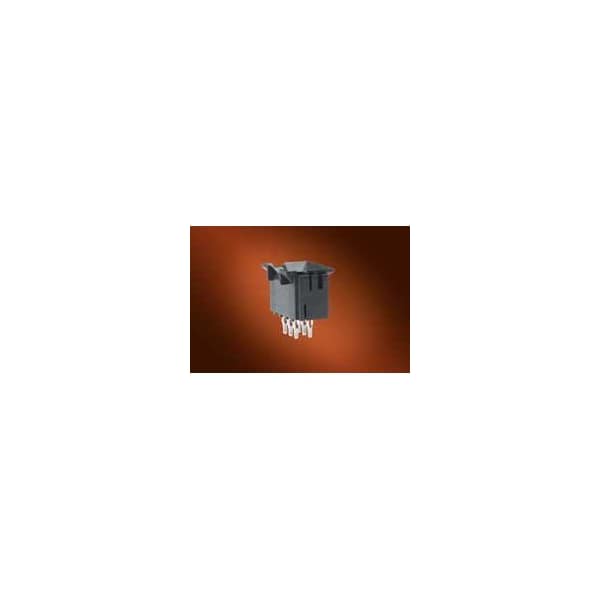

MF SMC Vert Hdr w/o Clip 30UAu 14Ckt

  • Mfr # 44068-0039
  • Zoro # G2763482
product price:
$
11.95
/ea
Sold in multiples of 10 for $119.50

Key Features

Flammability
94V-0
Color - Resin
Black
UL
E29179
Termination Interface: Style
Through Hole
Pitch - Mating Interface
4.20mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
44068-0039
Zoro #
G2763482
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

Flammability
94V-0
Color - Resin
Black
UL
E29179
Termination Interface: Style
Through Hole
Pitch - Mating Interface
4.20mm
Material - Metal
Brass
Material - Plating Mating
Gold
Circuits (maximum)
14
Voltage - Maximum
600V
Durability (mating cycles max)
30
Number of Rows
2
Pitch - Termination Interface
4.20mm
Process Temperature max. C
260
CSA
LR19980
Current - Maximum per Contact
13.0A
Max. Cycles at Max. Process Temperature
1
Polarized to PCB
Yes
Surface Mount Compatible (SMC)
Yes
Duration at Max. Process Temperature (seconds)
5
Material - Plating Termination
Gold
Circuits (Loaded)
14
Plating min - Termination
0.762µm
Orientation
Vertical
Material - Resin
High Temperature Thermoplastic
Temperature Range - Operating
-40° to +105°C
Shrouded
Partial
PCB Locator
Yes
Plating min - Mating
0.762µm
