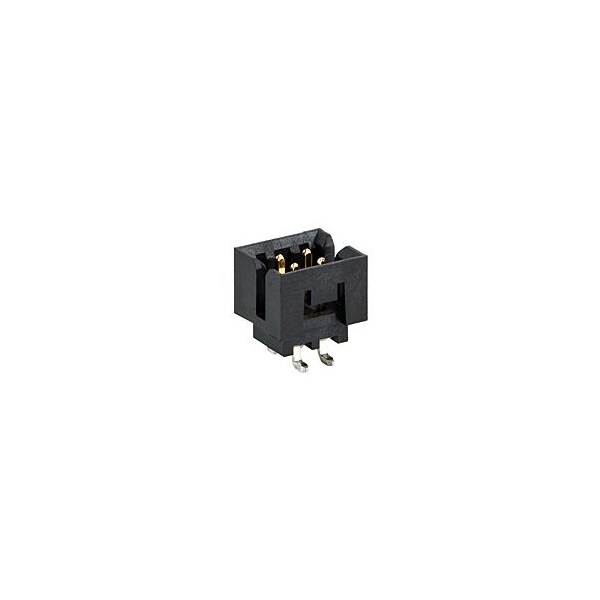

Molex MGrid Hdr Shrd SMT/LckO/Cap .38AuLF 6Ckt 87832-0610 - main

MGrid Hdr Shrd SMT/LckO/Cap .38AuLF 6Ckt

  • Mfr # 87832-0610

  • Zoro # G2755432

product price: $1.79
/ea
Sold in multiples of 4960 for $8,878.40

Key Features

Pitch - Termination Interface
2.00mm
CSA
LR19980
Orientation
Vertical
Process Temperature max. C
260
Temperature Range - Operating
-55° to +105°C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87832-0610
Zoro #
G2755432
UPC #
-
Country of Origin
Malaysia

Details

Pitch - Termination Interface
2.00mm
CSA
LR19980
Orientation
Vertical
Process Temperature max. C
260
Temperature Range - Operating
-55° to +105°C
Duration at Max. Process Temperature (seconds)
10
Voltage - Maximum
125V
Material - Resin
Nylon
Keying to Mating Part
Yes
Circuits (Loaded)
6
Max. Cycles at Max. Process Temperature
1
Pitch - Mating Interface
2.00mm
Termination Interface: Style
Surface Mount
Surface Mount Compatible (SMC)
Yes
Current - Maximum per Contact
2.0A
Plating min - Mating
0.381µm
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Flammability
94V-0
Durability (mating cycles max)
100
Color - Resin
Black
Circuits (maximum)
6
Material - Plating Mating
Gold
Number of Rows
2
Material - Metal
Phosphor Bronze
Shrouded
Fully
Plating min - Termination
1.905µm
UL
E29179
