  9. Mgrid Hdr Shrd Vt/Lck/Slot .38Aulf 4Ckt

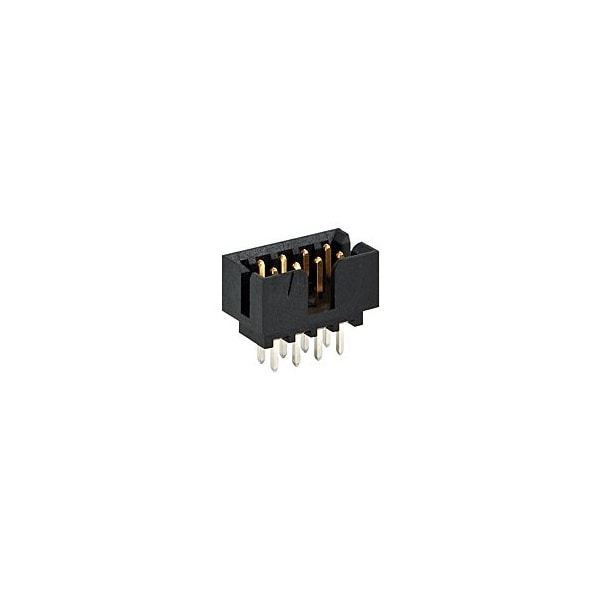

Molex Mgrid Hdr Shrd Vt/Lck/Slot .38Aulf 4Ckt 878310443 - main

Mgrid Hdr Shrd Vt/Lck/Slot .38Aulf 4Ckt

  • Mfr # 878310443

  • Zoro # G705911486

product price: $0.82
/ea
Sold in multiples of 150 for $123.00

Key Features

Number of Rows
2
Standards
CSA Certified; UL E29179
Material
Nylon
Application
Signal, Wire-to-Board
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
878310443
Zoro #
G705911486
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
2.50mm
PCB Thickness - Recommended
1.60mm

Details

Number of Rows
2
Standards
CSA Certified; UL E29179
Material
Nylon
Application
Signal, Wire-to-Board
Color
Black
Features
Surface Mount Compatible
Number of Contacts
4
Contact Finish
Gold Plated
Max. Temp.
105°C
Current Rating
2 A
Hole Center to Center
2 mm
Max. Voltage
125V
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Terminal Type
Through Hole
Keying to Mating Part
None
Material - Metal
Phosphor Bronze
Shrouded
Yes
Series
87831
Breakaway
No
CSA
LR19980
Flammability
94V-0
UL
E29179
Material - Plating Termination
Tin
Stackable
No
Material - Resin
Nylon
Durability (mating cycles max)
100
PCB Locator
No
First Mate / Last Break
No
Glow-Wire Capable
No
Orientation
Vertical
Guide to Mating Part
No
Lock to Mating Part
Yes
Plating min - Mating
0.381µm
Polarized to PCB
No
PCB Retention
None
Pitch - Mating Interface
2.00mm
Temperature Range - Operating
-55° to +105°C
Product Name
Milli-Grid
Current - Maximum per Contact
2.0A
Component Type
PCB Header
Material - Plating Mating
Gold
Circuits (Loaded)
4
