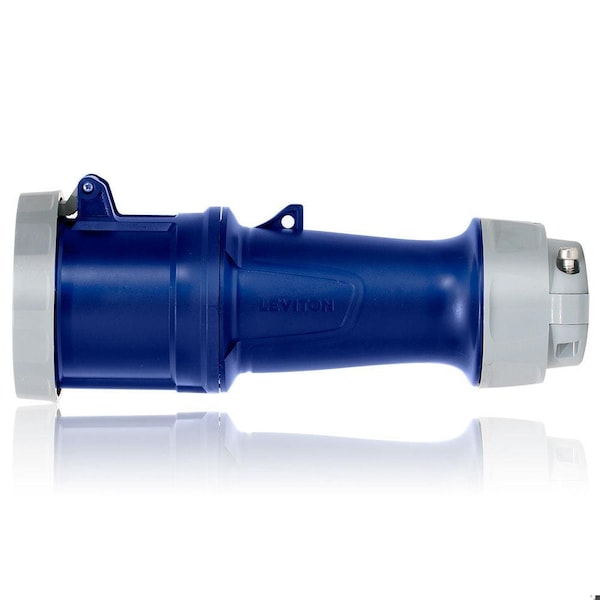

Leviton Pin & Sleeve Connector, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12 460C9WLEV - main

Pin & Sleeve Connector, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12

  • Mfr # 460C9WLEV

  • Zoro # G216091516

product price:  $419.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
460C9WLEV
Zoro #
G216091516
UPC #
078477901311
Country of Origin
Mexico

Dimensions

Overall Length
11.01 in
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Outside Diameter
3.35 in

Details

Item
Pin & Sleeve Connector
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
3R, 4X, 6P, 12
Wire Connection Type
Screw Terminals
Grounding Style
IEC
Housing Color
Blue
Standards
CE, CSA C22.2 No. 182.1-13 (Harmonized with UL 1682), IEC Rating 60309-1, 60309-2, NOM-ANCE, NSF 14159-1, RoHS, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV/Sunlight Resistant, Watertight
Features
Hex Style Socket Screws for Terminals
Switch Rated
No
Housing Material
Nylon
Market
Industrial
For Environment
Corrosive
UL 94 Flammability Rating
V-0
Compatible with Series
LEV
Horsepower Rating
7 1/2 hp

Description

Pin and Sleeve Connector with Power Indication
