Shop MOLEX

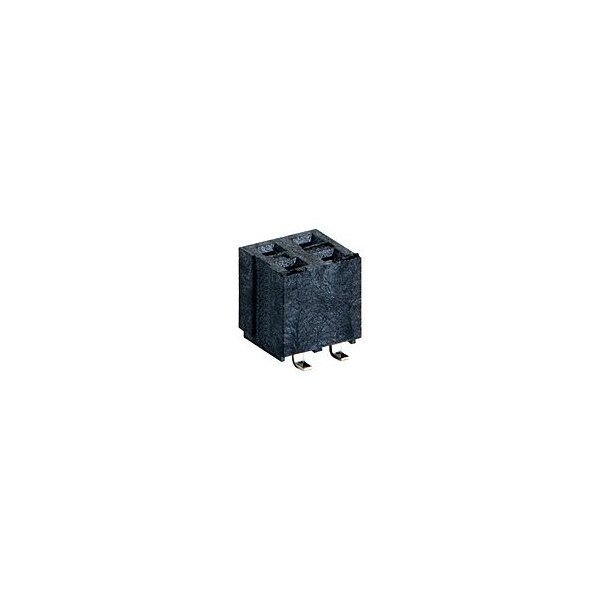

MGrid VRec /Cap /Pg T&R .38AuLF 4Ckt

  • Mfr # 79109-8601

  • Zoro # G2753883

product price:  $0.88
/ea
Sold in multiples of 500 for $440.00

Key Features

Process Temperature max. C
260
Color - Resin
Black
Durability (mating cycles max)
50
Temperature Range - Operating
-55° to +105°C
Voltage - Maximum
125V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
79109-8601
Zoro #
G2753883
UPC #
-
Country of Origin
Singapore

Details

Process Temperature max. C
260
Color - Resin
Black
Durability (mating cycles max)
50
Temperature Range - Operating
-55° to +105°C
Voltage - Maximum
125V
Plating min - Mating
0.381µm
Flammability
94V-0
Circuits (Loaded)
4
Material - Resin
High Temperature Thermoplastic
UL
E29179
Termination Interface: Style
Surface Mount
Plating min - Termination
1.905µm
Duration at Max. Process Temperature (seconds)
10
Max. Cycles at Max. Process Temperature
1
PCB Retention
Yes
Pitch - Mating Interface
2.00mm
Material - Plating Mating
Gold
Number of Rows
2
PCB Locator
Yes
Circuits (maximum)
4
Material - Plating Termination
Tin
Material - Metal
Phosphor Bronze
Current - Maximum per Contact
1.0A
CSA
LR19980
Orientation
Vertical
