  11. Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

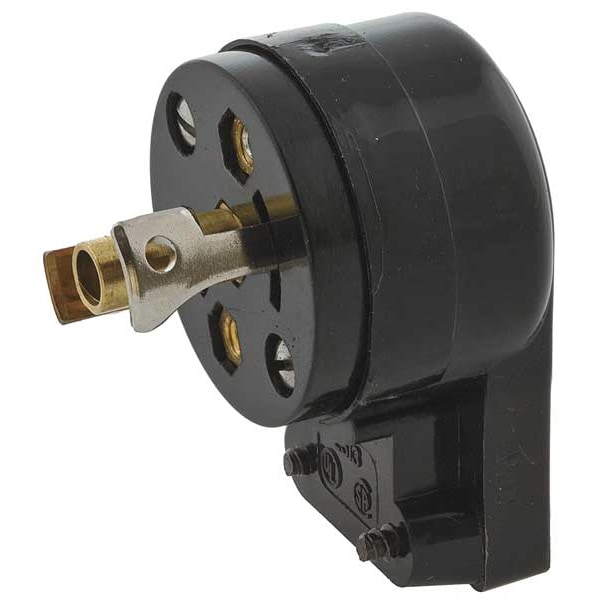

Hubbell Wiring Device-Kellems Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7570 - main

Midget Locking Plug, ML2-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7570

  • Zoro # G0783377

product price: $25.99
/ea

Key Features

NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7570
Zoro #
G0783377
UPC #
783585237688
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.421 in
For Minimum Cable Diameter
0.335 in
Cord Size
0.335 in to 0.421 in
Maximum Wire Size
14 AWG
Body Length
1.68 in
Minimum Wire Size
18 AWG
Face Diameter
1.17 in
Length
1.68 in

Details

Item
Midget Locking Plug
NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Body Material
Nylon
Housing Material
Nylon
For Location
Indoor
Minimum Operating Temperature
-40 Degrees C
Midget Locking
Yes
Blade Material
Brass
For Environment
Dry
Polarized
Yes
Market
Commercial, Industrial
Maximum Operating Temperature
75 Degrees C
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
NEMA Configuration
ML2-15
Amps
15 A

Description

• Abuse resistant nylon housing
• Phenolic body for high heat resistance
• Angled body design for low profile in tight spaces
• Totally insulated body adds extra measure of safety
