Shop MOLEX

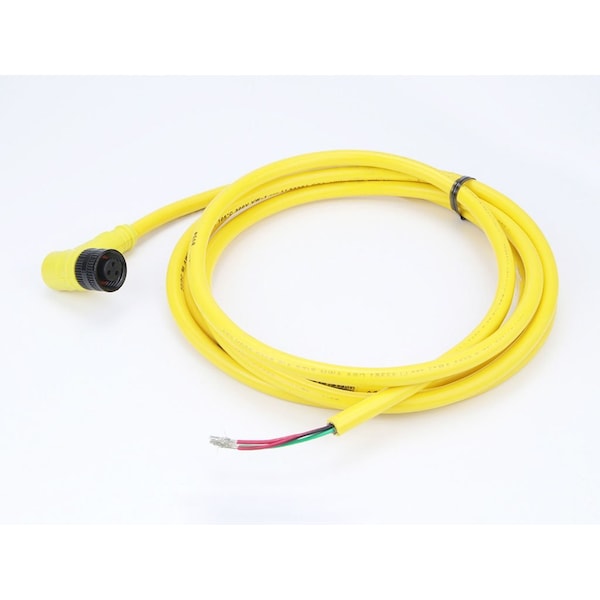

MIC 3P FP 6FT. No 22/3 90D AUTOM

  • Mfr # 1200720250

  • Zoro # G2754723

product price:  $47.29
/ea
Sold in multiples of 2 for $94.58

Key Features

Gender
Female-Pigtail
Temperature Range - Operating
-20° to +105°C
Protocol
PROFIBUS
Material - O-Ring
Nitrile Rubber
Material - Contact
Copper Alloy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200720250
Zoro #
G2754723
UPC #
786788759124
Country of Origin
Mexico

Dimensions

Wire Size (AWG)
22
Cable Length
1.83m (6.0')
Cable Diameter
5.72mm (.225")

Details

Gender
Female-Pigtail
Temperature Range - Operating
-20° to +105°C
Protocol
PROFIBUS
Material - O-Ring
Nitrile Rubber
Material - Contact
Copper Alloy
Material - Cable Jacket
PVC
Connector End B
Pigtail
Keyway
Dual
Wire/Cable Type
UL 2661
Poles
3
IP Rating
IP67
UL
E152210
Current - Maximum per Contact
4.0A
Connector End A
Micro-Change (1/2" - 20 UNF)
Material - Connector Body
TPE
Material - Plating Mating
Gold
Orientation
90° to Pigtail
Color - Cable Jacket
Yellow
Type
Single Ended
Series
120072
Material - Coupling Nut
Black Epoxy Coated Zinc
Coupling Style
Threaded
Voltage - Maximum
250V AC/DC
CSA
LR6837
Product Name
Micro-Change (1/2" - 20 UNF)
LED Indicator
No
