Shop MOLEX

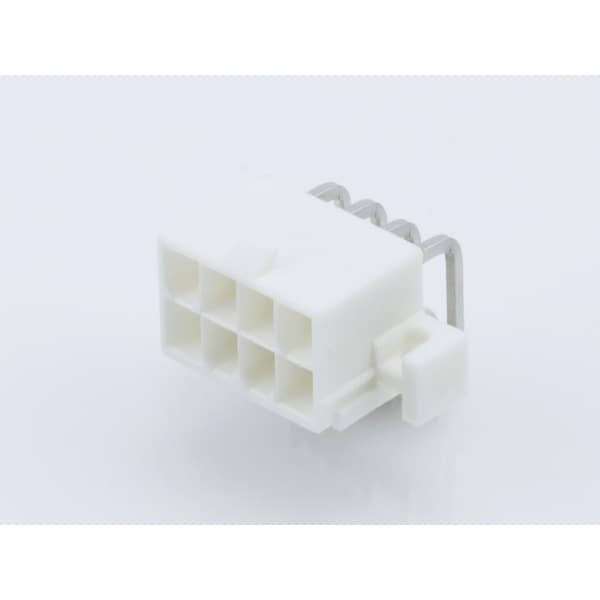

8CKT R/A MINI FIT HEADER 556908A1210

  • Mfr # 39-29-1087

  • Zoro # G800415339

product price:  $1.75
/ea
Sold in multiples of 58 for $101.50

Key Features

Material - Resin
Nylon
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
30
Color - Resin
Natural
Material - Metal
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-29-1087
Zoro #
G800415339
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Material - Resin
Nylon
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
30
Color - Resin
Natural
Material - Metal
Brass
Current - Maximum per Contact
13.0A
Pitch - Mating Interface
4.20mm
Plating min - Termination
2.540µm
Plating min - Mating
2.540µm
CSA
LR19980
Material - Plating Mating
Matte Tin
Lock to Mating Part
Yes
Voltage - Maximum
600V
Termination Interface: Style
Through Hole
Pitch - Termination Interface
4.20mm
Circuits (Loaded)
8
Temperature Range - Operating
-40° to +105°C
Max. Cycles at Max. Process Temperature
1
Circuits (maximum)
8
PCB Locator
Yes
Number of Rows
2
Shrouded
Fully
UL
E29179
Flammability
94V-0
Orientation
Right Angle
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Process Temperature max. C
260
PCB Retention
Yes
Duration at Max. Process Temperature (seconds)
5
