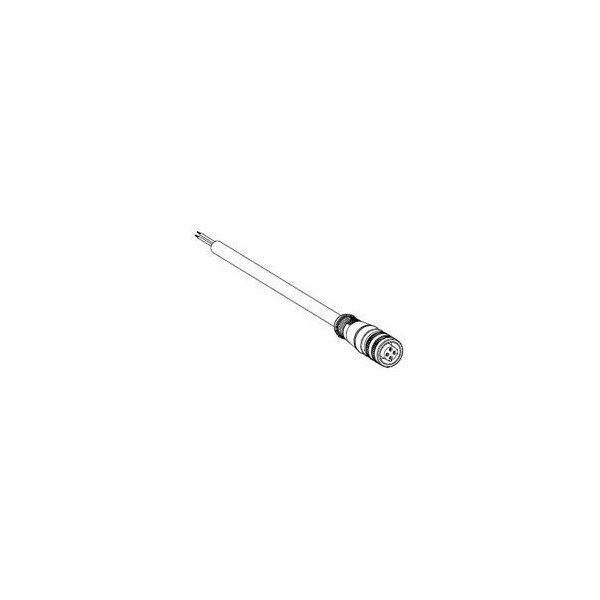

MIC 5P FP 20M #22AWG PVC

  • Mfr # 1200651823

  • Zoro # G2747714


product price: $119.99
/ea
Sold in multiples of 4 for $479.96
Free Shipping & Returns

Key Features

Coupling Style
Threaded
CSA
LR6837
Keyway
Single
Cable Length
20.0m (65.62')
Material - Cable Jacket
PVC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200651823
Zoro #
G2747714
UPC #
78678899051
Country of Origin
United States

Dimensions

Cable Length
20.0m (65.62')
Cable Diameter
5.72mm (.225")
Wire Size AWG
22

Details

Coupling Style
Threaded
CSA
LR6837
Keyway
Single
Material - Cable Jacket
PVC
Material - O-Ring
Fluoro-elastomer
Material - Connector Body
PUR
Wire/Cable Type
UL 2661
UL
E152210
Poles
5
Color - Cable Jacket
Yellow
Gender
Female-Pigtail
Temperature Range - Operating
-20°C to +105°C
Current - Maximum per Contact
4.0A
Material - Coupling Nut
Nickel-plated Brass
Material - Plating Mating
Gold
Voltage - Maximum
250V AC/DC
Orientation
Straight to Pigtail
IP Rating
IP67
Connector End B
Pigtail
Type
Single Ended
Material - Contact
Copper Alloy
LED Indicator
No
Connector End A
Micro-Change (M12)
Series
120065
Product Name
Micro-Change (M12)
