  11. Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly

This item is Discontinued.

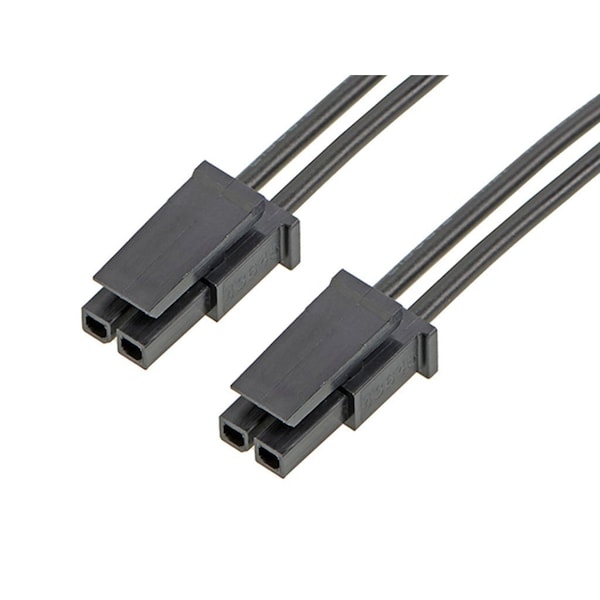

Molex Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly 2147501021

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly (Discontinued)

  • Mfr # 2147501021
  • Zoro # G405959603
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2147501021
Zoro #
G405959603
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Size AWG
18
Wire Insulation Diameter
1.85mm max.

Details

Type
Discrete Wire Assembly
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Color - Resin
Black
Gender
Female-Female
Material - Resin
Nylon
Lock to Mating Part
Yes
Wire/Cable Type
Discrete Wire, UL 10002
Material - Plating Mating
Tin
Circuits (Loaded)
2
Current - Maximum per Contact
8.5A
Plating min - Mating
1.016µm
Plating min - Termination
1.016µm
Material - Metal
Phosphor Bronze
Pitch - Mating Interface
3.00mm
Number of Rows
1
Material - Plating Termination
Tin
Product Name
Micro-Fit 3.0
Assembly Configuration
Dual Ended Connectors
Voltage - Maximum
300V AC/DC
Overmolded
No
Termination Interface Style
Crimp or Compression
Connector to Connector
Micro-Fit 3.0 Both Ends
Single Ended
No
