Shop MOLEX

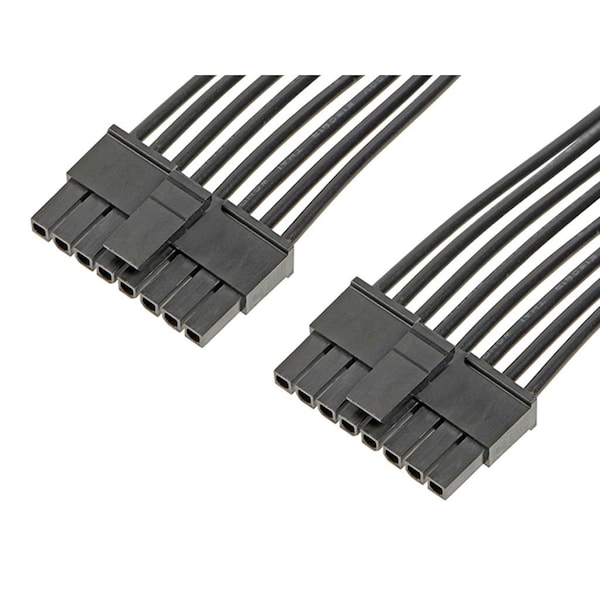

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147501081

  • Zoro # G605959205

product price:  $4.15
/ea
Sold in multiples of 20 for $83.00

Key Features

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Cable Length
150.00mm
Series
214750
Material - Plating Mating
Tin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2147501081
Zoro #
G605959205
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Size AWG
18
Wire Insulation Diameter
1.85mm max.

Details

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Series
214750
Material - Plating Mating
Tin
Lock to Mating Part
Yes
Color - Resin
Black
Material - Metal
Phosphor Bronze
Gender
Female-Female
Material - Resin
Nylon
Wire/Cable Type
Discrete Wire, UL 10002
Pitch - Mating Interface
3.00mm
Current - Maximum per Contact
8.5A
Material - Plating Termination
Tin
Plating min - Mating
1.016µm
Plating min - Termination
1.016µm
Number of Rows
1
Circuits (Loaded)
8
Single Ended
No
Connector to Connector
Micro-Fit 3.0 Both Ends
Assembly Configuration
Dual Ended Connectors
Termination Interface Style
Crimp or Compression
Overmolded
No
Product Name
Micro-Fit 3.0
Voltage - Maximum
300V AC/DC
