  9. Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Dual Row

This item is Discontinued.

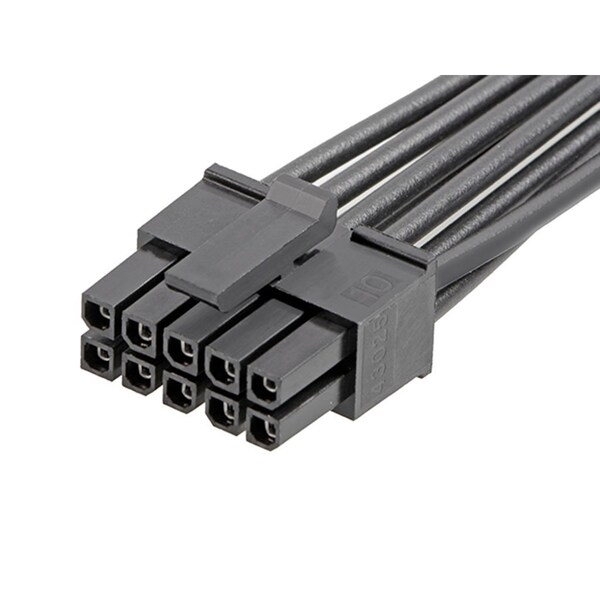

Molex Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Dual Row 2147562102

Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Dual Row (Discontinued)

  • Mfr # 2147562102
  • Zoro # G405791104
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2147562102
Zoro #
G405791104
UPC #
-
Country of Origin
India

Dimensions

Length
300 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
0.762 µm
Wire Insulation Diameter
1.85mm max.
Cable Length
300.00mm
Wire Size (AWG)
18

Details

Color
Black
Series
214756
Application
Power, Wire-to-Board, Wire-to-Wire
Material
Nylon
Connector Type
Female-Pigtail
Wire Range
18 AWG
Number of Contacts
10
Hole Center to Center
3 mm
Contact Finish
Gold Plated
Current Rating
8.5 A
Number of Rows
2
Terminal Type
Crimp or Compression
Type
Discrete Wire Assembly
Terminal Finish
Tin Plated
Assembly Configuration
Single Ended Connector
Product Name
Micro-Fit 3.0
Connector to Connector
Micro-Fit 3.0-to-Pigtail
Material - Plating Termination
Tin
Material - Resin
Nylon
Pitch - Mating Interface
3.00mm
Lock to Mating Part
Yes
Circuits (Loaded)
10
Current - Maximum per Contact
8.5A
Material - Plating Mating
Gold
Overmolded
No
Plating min - Mating
0.762µm
Single Ended
Yes
Voltage - Maximum
300V AC/DC
Material - Metal
Phosphor Bronze
Wire/Cable Type
UL 1061
