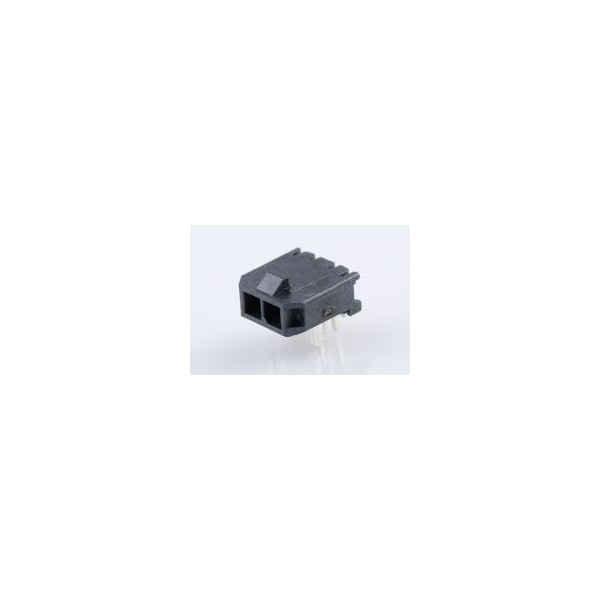

MicroFit 3.0 SR RA TH Clip 15Au 2Ckt
Mfr # 43650-0204
Zoro # G4047538
product price: $1.35
/eaSold in multiples of 95 for $128.25
Key Features
Color
Black
Number of Rows
1
Maximum Voltage
600 V
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
43650-0204
Zoro #
G4047538
UPC #
-
Country of Origin
Mexico
Dimensions
Contact Plating Thickness
0.381 µm
Details
Color
Black
Number of Rows
1
Maximum Voltage
600 V
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Standards
CSA Certified; UL E29179
Features
Glow-Wire Capable; Surface Mount Compatible
Hole Center to Center
3 mm
Terminal Type
Through Hole
Max. Voltage
600V
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Current Rating
8.5 A
Contact Finish
Gold Plated
Number of Contacts
2
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
