  11. Mini-Fit Jr. Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row
This item is Discontinued.

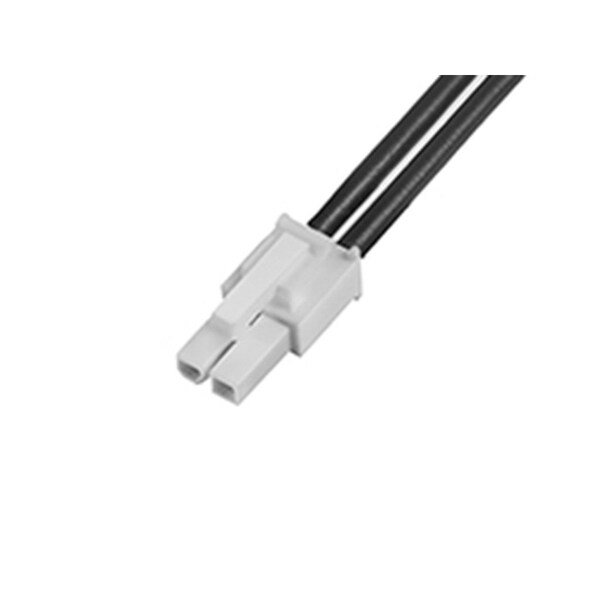

Molex Mini-Fit Jr. Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row 2153211021

Mini-Fit Jr. Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row (Discontinued)

  • Mfr # 2153211021
  • Zoro # G605926221
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2153211021
Zoro #
G605926221
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Insulation Diameter
1.80-3.10mm
Wire Size AWG
16

Details

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Series
215321
Termination Interface: Style
Crimp or Compression
Plating min - Termination
0.889µm
Material - Metal
Brass
Gender
Female-Pigtail
Color - Resin
Black
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Current - Maximum per Contact
9.0A
Lock to Mating Part
Yes
Plating min - Mating
0.889µm
Number of Rows
1
Voltage - Maximum
600V
Wire/Cable Type
UL 1015
Material - Resin
Nylon
Single Ended
Yes
Pitch - Mating Interface
4.20mm
Circuits (Loaded)
2
Assembly Configuration
Single Ended Connector
Product Name
Mini-Fit Jr.
Overmolded
No
Connector to Connector
Mini-Fit Jr.-to-Pigtail
