Shop MOLEX

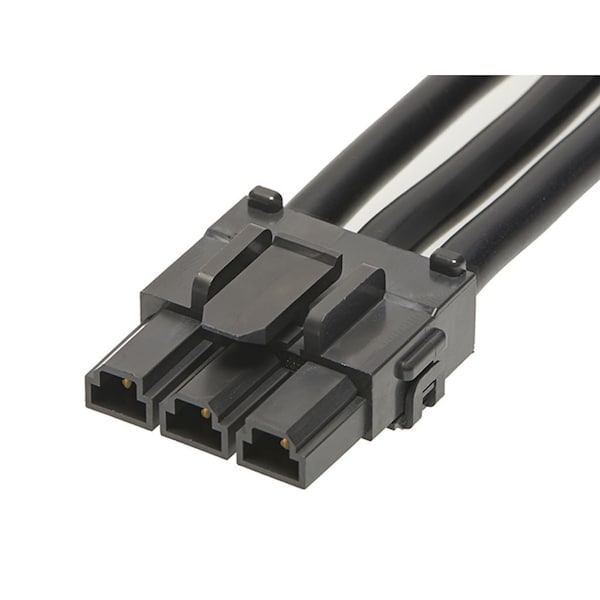

Minifit-Sr 3 Circuit 300Mm

  • Mfr # 369240303

  • Zoro # G205922142

product price:
$
25.79
/ea
Sold in multiples of 4 for $103.16

Key Features

Max. Amps
50 A
Jacket Color
Black
Standards
UL 1015
Spool Length
0.30 m
Wire Gauge
8 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
369240303
Zoro #
G205922142
UPC #
-
Country of Origin
India

Dimensions

Spool Length
0.30 m
Wire Size (AWG)
8
Cable Length
0.30m
Wire Insulation Diameter
6.60mm max.

Details

Max. Amps
50 A
Jacket Color
Black
Standards
UL 1015
Wire Gauge
8 AWG
Conductor Material
High Performance Alloy (HPA)
Lock to Mating Part
Yes
Product Name
Mini-Fit Sr.
Circuits (Loaded)
3
Plating min - Mating
0.762µm
Material - Plating Termination
Tin
Overmolded
No
Application
Power, Wire-to-Board, Wire-to-Wire
Connector to Connector
Mini-Fit Sr.-to-Mini-Fit Sr.
Gender
Female-Female
Material - Resin
Polyester
Voltage - Maximum
600V AC/DC
Series
36924
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Pitch - Mating Interface
10.00mm
Current - Maximum per Contact
50.0A
Material - Plating Mating
Gold
Type
Discrete Wire Assembly, High-Power Assembly
Termination Interface Style
Crimp or Compression
Number of Rows
1
