  9. Minifit Sr Hdr Vert 093 Clip 3 Ckt Gold

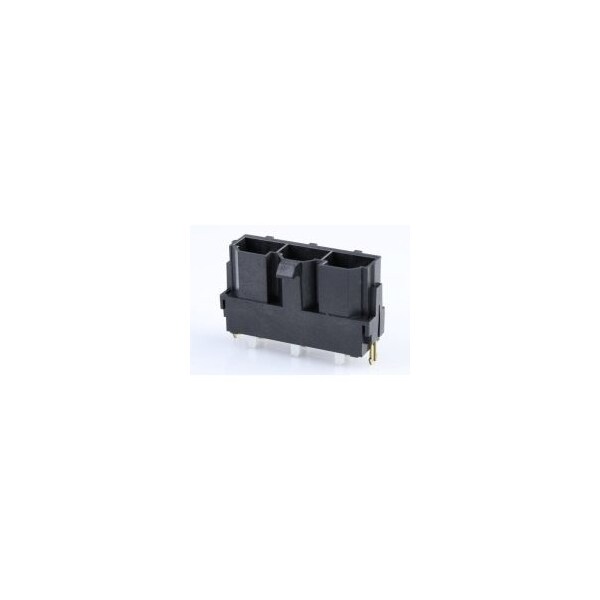

Molex Minifit Sr Hdr Vert 093 Clip 3 Ckt Gold 428193223 - main

Minifit Sr Hdr Vert 093 Clip 3 Ckt Gold

  • Mfr # 428193223

  • Zoro # G305910445

product price: $6.15
/ea
Sold in multiples of 14 for $86.10

Key Features

Color
Black
Number of Rows
1
Series
42819
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
428193223
Zoro #
G305910445
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
5.10mm
PCB Thickness - Recommended
2.36mm

Details

Color
Black
Number of Rows
1
Series
42819
Max. Voltage
600V
Application
Power, Wire-to-Board
Hole Center to Center
1 mm
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Max. Temp.
235°C
Standards
CSA Certified; UL E29179
Current Rating
50 A
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
3
Pitch - Mating Interface
10.00mm
Product Name
Mini-Fit Sr.
Material - Plating Termination
Tin
Max-Cycle
3
Circuits (Loaded)
3
Max-Duration
30
Breakaway
No
UL
E29179
Stackable
No
Keying to Mating Part
None
PCB Retention
Yes
Component Type
PCB Header
Material - Plating Mating
Gold
Guide to Mating Part
No
PCB Locator
Yes
CSA
LR19980
Lock to Mating Part
Yes
Glow-Wire Capable
No
Durability (mating cycles max)
100
Orientation
Vertical
Current - Maximum per Contact
50.0A
Polarized to Mating Part
Yes
Flammability
94V-0
First Mate / Last Break
No
Max-Temp
235
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.762µm
Shrouded
Fully
Polarized to PCB
Yes
Material - Metal
Brass
Temperature Range - Operating
-40° to +105°C
