  9. Minifit Sr Hdr Vert 093 Clip 6 Ckt Tin

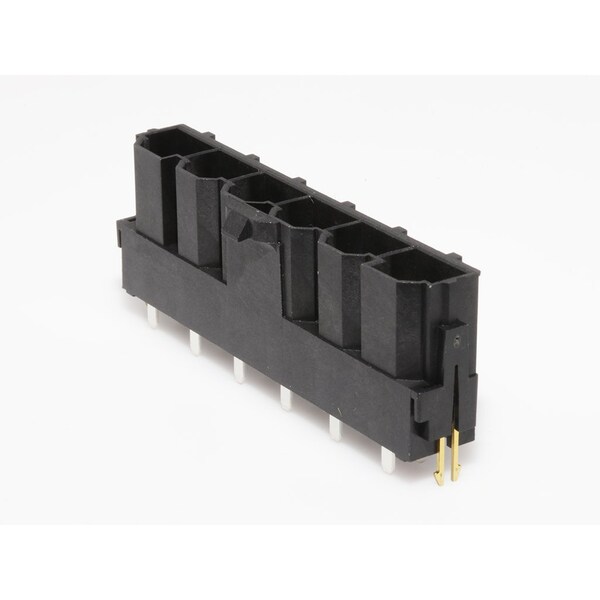

Molex Minifit Sr Hdr Vert 093 Clip 6 Ckt Tin 428196222 - main

Minifit Sr Hdr Vert 093 Clip 6 Ckt Tin

  • Mfr # 428196222

  • Zoro # G505910672

product price: $10.99
/ea
Sold in multiples of 10 for $109.90

Key Features

Number of Rows
1
Series
42819
Application
Power, Wire-to-Board
Max-Temp
235
Material - Plating Mating
Tin
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
428196222
Zoro #
G505910672
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.36mm
PC Tail Length
5.10mm

Details

Number of Rows
1
Series
42819
Application
Power, Wire-to-Board
Max-Temp
235
Material - Plating Mating
Tin
CSA
LR19980
Component Type
PCB Header
Lock to Mating Part
Yes
Plating min - Mating
2.540µm
Flammability
94V-0
Shrouded
Fully
Orientation
Vertical
Durability (mating cycles max)
30
Polarized to PCB
Yes
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
UL
E29179
Circuits (Loaded)
6
Guide to Mating Part
No
Color - Resin
Black
Max-Cycle
3
First Mate / Last Break
No
Stackable
No
Breakaway
No
Current - Maximum per Contact
50.0A
Polarized to Mating Part
Yes
Max-Duration
30
Pitch - Mating Interface
10.00mm
PCB Locator
Yes
PCB Retention
Yes
Glow-Wire Capable
No
Keying to Mating Part
None
Termination Interface Style
Through Hole
Material - Metal
Brass
Temperature Range - Operating
-40° to +105°C
Voltage - Maximum
600V
Product Name
Mini-Fit Sr.
