  9. Minifit Sr Hdr Vert 250 Clip 3 Ckt Tin

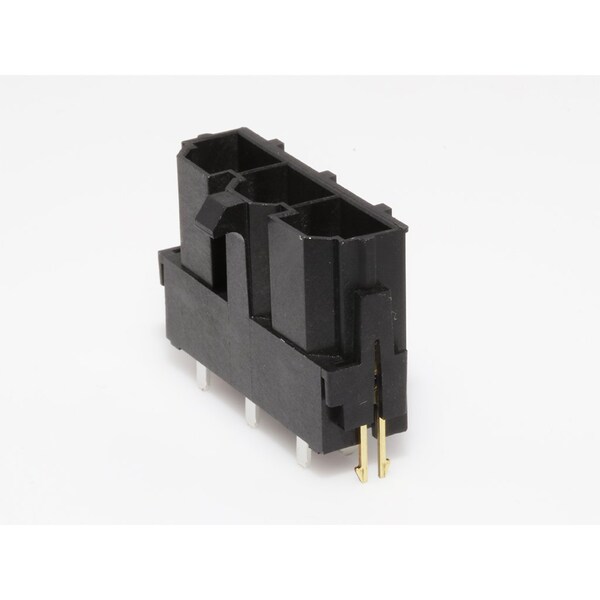

Molex Minifit Sr Hdr Vert 250 Clip 3 Ckt Tin 428193242 - main

Minifit Sr Hdr Vert 250 Clip 3 Ckt Tin

  • Mfr # 428193242

  • Zoro # G105910485

product price: $4.99
/ea
Sold in multiples of 15 for $74.85

Key Features

Number of Rows
1
Series
42819
Application
Power, Wire-to-Board
Material - Metal
Brass
Circuits (Loaded)
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
428193242
Zoro #
G105910485
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
6.35mm
PC Tail Length
8.30mm

Details

Number of Rows
1
Series
42819
Application
Power, Wire-to-Board
Material - Metal
Brass
Circuits (Loaded)
3
Plating min - Mating
2.540µm
Pitch - Mating Interface
10.00mm
Voltage - Maximum
600V
Durability (mating cycles max)
30
Material - Resin
High Temperature Thermoplastic
CSA
LR19980
Lock to Mating Part
Yes
Color - Resin
Black
Keying to Mating Part
None
Max-Duration
30
UL
E29179
PCB Locator
Yes
Material - Plating Mating
Tin
Orientation
Vertical
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Current - Maximum per Contact
50.0A
Material - Plating Termination
Tin
Max-Cycle
3
Breakaway
No
Component Type
PCB Header
Flammability
94V-0
Stackable
No
Termination Interface Style
Through Hole
Max-Temp
235
Temperature Range - Operating
-40° to +105°C
PCB Retention
Yes
Guide to Mating Part
No
Shrouded
Fully
First Mate / Last Break
No
Polarized to PCB
Yes
Product Name
Mini-Fit Sr.
