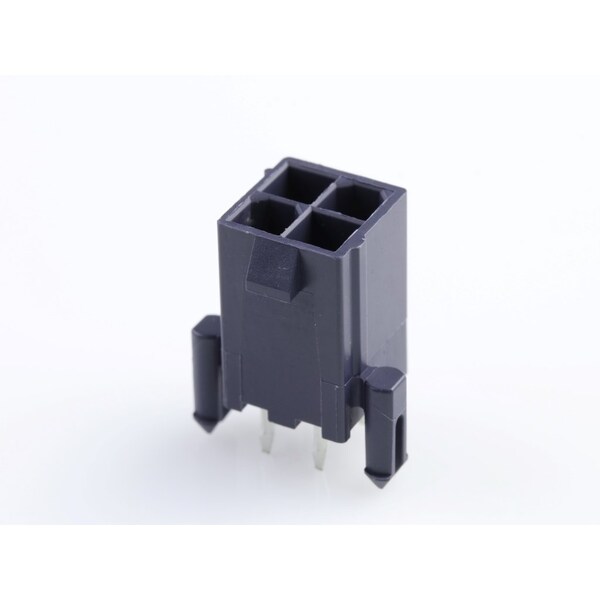

Molex MiniFitJr Vert Hdr w/Pegs 4Ckt GlowWire 172447-0004 - main

MiniFitJr Vert Hdr w/Pegs 4Ckt GlowWire

  • Mfr # 172447-0004

  • Zoro # G4040319

product price:  $0.95
/ea
Sold in multiples of 150 for $142.50

Key Features

Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
Glow-Wire Capable
Yes
Color - Resin
Black
Material - Metal
Brass
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
172447-0004
Zoro #
G4040319
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm

Details

Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
Glow-Wire Capable
Yes
Color - Resin
Black
Material - Metal
Brass
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
PCB Retention
Yes
Pitch - Termination Interface
4.20mm
Voltage - Maximum
600V AC (RMS)/DC
CSA
LR19980
Flammability
94V-2
Material - Resin
Nylon
Keying to Mating Part
Yes
UL
E29179
Material - Plating Mating
Tin
Process Temperature max. C
220
Current - Maximum per Contact
9.0A
Number of Rows
2
Pitch - Mating Interface
4.20mm
Polarized to Mating Part
Yes
Orientation
Vertical
Max. Cycles at Max. Process Temperature
1
Circuits (Loaded)
4
Circuits (maximum)
4
Durability (mating cycles max)
30
Polarized to PCB
Yes
Lock to Mating Part
Yes
Shrouded
Fully

Documents & Resources
