Shop MOLEX

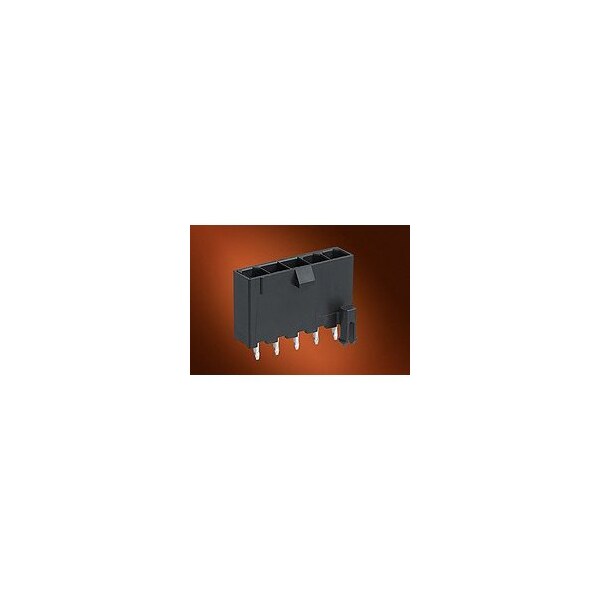

MiniFitJrHdr Vt SR W/Pgs Sn V0 5Ckt

  • Mfr # 50-36-2452

  • Zoro # G4049382

product price:  $0.44
/ea
Sold in multiples of 200 for $88.00

Key Features

UL
E29179
Process Temperature max. C
240
Lock to Mating Part
Yes
Shrouded
Fully
Material - Plating Termination
Tin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50-36-2452
Zoro #
G4049382
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

UL
E29179
Process Temperature max. C
240
Lock to Mating Part
Yes
Shrouded
Fully
Material - Plating Termination
Tin
Polarized to Mating Part
Yes
PCB Locator
Yes
Number of Rows
1
Flammability
94V-0
Plating min - Termination
2.540µm
PCB Retention
Yes
Circuits (Loaded)
5
Pitch - Termination Interface
4.20mm
Duration at Max. Process Temperature (seconds)
5
Pitch - Mating Interface
4.20mm
CSA
LR19980
Termination Interface: Style
Through Hole
Orientation
Vertical
Material - Resin
Nylon
Current - Maximum per Contact
9.0A
Color - Resin
Natural
Max. Cycles at Max. Process Temperature
1
Plating min - Mating
2.540µm
Circuits (maximum)
5
Polarized to PCB
Yes
Material - Plating Mating
Tin
Material - Metal
Brass
Temperature Range - Operating
-40° to +105°C
Durability (mating cycles max)
30
Voltage - Maximum
600V
