Shop MOLEX

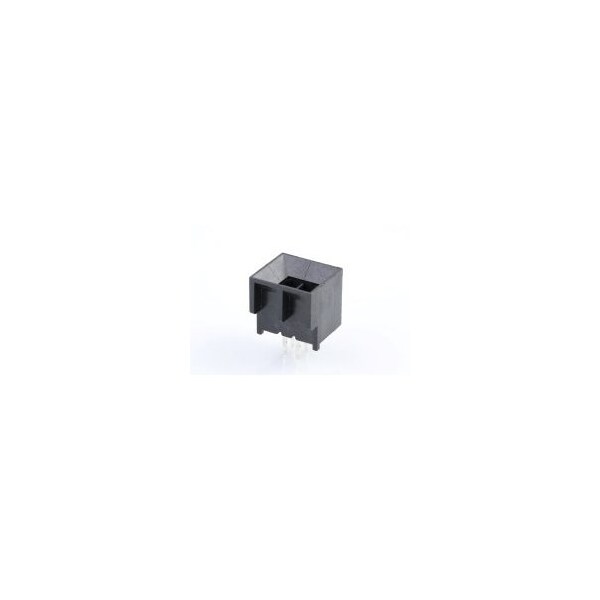

MicroFit 3.0 Header Vert CPI 4Ckt 121

  • Mfr # 45280-0401

  • Zoro # G2745833

product price:  $2.25
/ea
Sold in multiples of 40 for $90.00

Key Features

Polarized to PCB
Yes
Guide to Mating Part
Yes
Pitch - Mating Interface
3.00mm
Circuits (maximum)
4
Plating min - Mating
5.080µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45280-0401
Zoro #
G2745833
UPC #
-
Country of Origin
United States

Dimensions

PC Tail Length
4.80mm

Details

Polarized to PCB
Yes
Guide to Mating Part
Yes
Pitch - Mating Interface
3.00mm
Circuits (maximum)
4
Plating min - Mating
5.080µm
Voltage - Maximum
600V
Current - Maximum per Contact
8.5A
PCB Retention
Yes
Plating min - Termination
5.080µm
Circuits (Loaded)
4
Material - Plating Termination
Tin
Number of Rows
2
Flammability
94V-0
Durability (mating cycles max)
30
UL
E29179
Material - Resin
High Temperature Thermoplastic
Shrouded
Fully
Termination Interface: Style
Through Hole - Compliant Pin
CSA
LR19980
Material - Metal
High Performance Alloy (HPA)
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Polarized to Mating Part
Yes
Material - Plating Mating
Tin
Color - Resin
Black
Orientation
Vertical
