Shop MOLEX

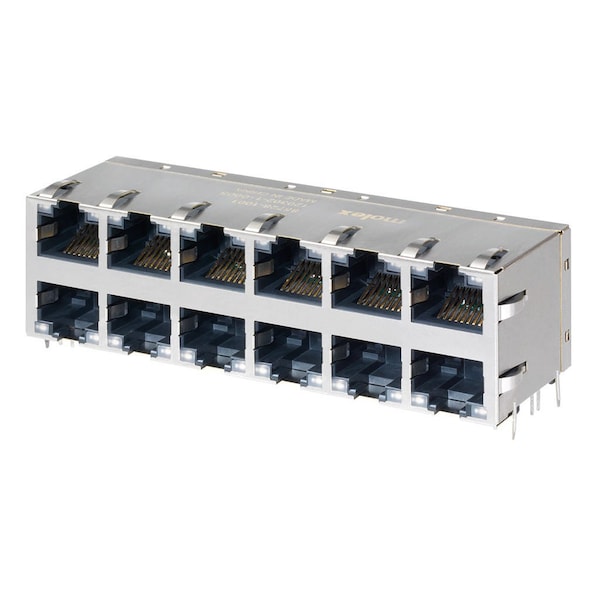

Modular Connectors / Ethernet Connectors Gigabit Magjack 2X6 Leds Grn Yw

  • Mfr # 857281003

  • Zoro # G505929919

product price:
$
75.85
/ea
Sold in multiples of 2 for $151.70

Key Features

Series
85728
Material - Plating Termination
Tin
Termination Interface Style
Through Hole
Magnetic
Yes
Pitch - Mating Interface
1.02mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
857281003
Zoro #
G505929919
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness - Recommended
3.20mm
Jack Height
25.43mm

Details

Series
85728
Material - Plating Termination
Tin
Termination Interface Style
Through Hole
Magnetic
Yes
Pitch - Mating Interface
1.02mm
Current - Maximum per Contact
1.0A
Grounding to Panel
Panel Ground Tab
Port Configuration
2x6
Lightpipes/LEDs
LEDs
Temperature Range - Operating
0° to +70°C
Performance Category
5, 5e
Grounding to PCB
Yes
Material - Resin
Polyester
Material - Plating Mating
Gold
Wire/Cable Type
CAT 5, CAT 6
Orientation
Right Angle (Side Entry)
Voltage - Maximum
125V AC (RMS)
Inverted / Top Latch
Yes
Durability (mating cycles max)
750
Material - Metal
Brass, Phosphor Bronze
Product Name
Magnetic Jack,RJ45
Component Type
PCB Jack
Positions / Loaded Contacts
8/8
Shielded
Yes
PCB Retention
None
Power over Ethernet (PoE)
Non-PoE
