This item is Discontinued.

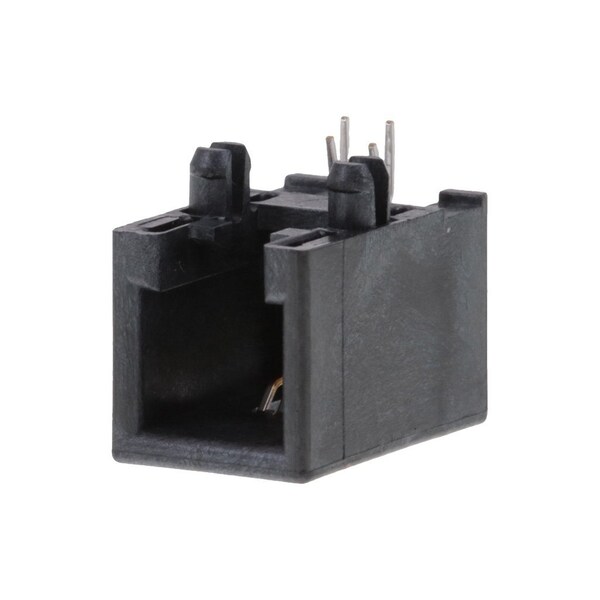

Molex Modular Connectors / Ethernet Connectors Ra 4/4 Lo Profile 955012441

Modular Connectors / Ethernet Connectors Ra 4/4 Lo Profile (Discontinued)

  • Mfr # 955012441
  • Zoro # G305930023
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
955012441
Zoro #
G305930023
UPC #
-
Country of Origin
China

Dimensions

Jack Height
11.50mm
PCB Thickness - Recommended
1.57mm

Details

Series
95501
Max-Cycle
1
Flammability
94V-0
Max-Temp
260
Orientation
Right Angle (Side Entry)
UL
E107635
Voltage - Maximum
125V DC
Pitch - Mating Interface
1.02mm
Positions / Loaded Contacts
4/4
Product Name
Modular Jack 4/4
Plating min - Mating
0.051µm, 0.600µm
Waterproof / Dustproof
No
Current - Maximum per Contact
1.5A
PCB Locator
Yes
Color - Resin
Black
Temperature Range - Operating
-40° to +85°C
Max-Duration
5
PCB Retention
Yes
Material - Plating Mating
Gold over Palladium Nickel
Port Configuration
1x1
Durability (mating cycles max)
2500
Material - Metal
Copper Alloy
Inverted / Top Latch
No
Shielded
No
Material - Resin
High Temperature Thermoplastic
Termination Interface Style
Through Hole
Performance Category
3
Material - Plating Termination
Tin
Component Type
PCB Jack
Magnetic
No
