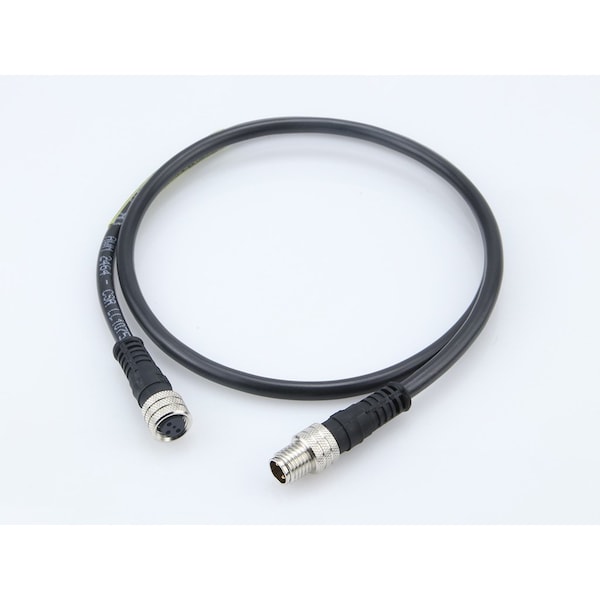

Molex NC-3P-FE/MM-ST/ST-0.6M-PVC-NUT 1200875035 - main

NC-3P-FE/MM-ST/ST-0.6M-PVC-NUT

  • Mfr # 1200875035

  • Zoro # G600440234

product price: $19.79
/ea
Sold in multiples of 4 for $79.16

Key Features

Cable Length
0.6 m
IP Rating
IP67
Type
Double Ended
Keyway
None
Coupling Style
Threaded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200875035
Zoro #
G600440234
UPC #
-
Country of Origin
Unknown

Dimensions

Cable Length
0.6 m
Cable Diameter
5.00mm (.197")
Wire Size
24 AWG

Details

IP Rating
IP67
Type
Double Ended
Keyway
None
Coupling Style
Threaded
Material - Plating Mating
Gold
UL
E152210
Material - Coupling Nut
Nickel-plated Brass
Material - O-Ring
Fluoro-elastomer
Current - Maximum per Contact
3.0A
Poles
3
LED Indicator
No
Voltage - Maximum
60V
Wire/Cable Type
UL 2464
Gender
Female-Male
Orientation
Straight to Straight
Material - Connector Body
PUR
Temperature Range - Operating
-25°C to +80°C
Series
120087
Material - Contact
Copper Alloy
Product Name
Nano-Change (M8)
Connector End B
Nano-Change (M8)
Connector End A
Nano-Change (M8)
Cable Jacket Material
PVC
Cable Jacket Color
Yellow
Item
Sensor Receptacle

Description
