Shop MOLEX

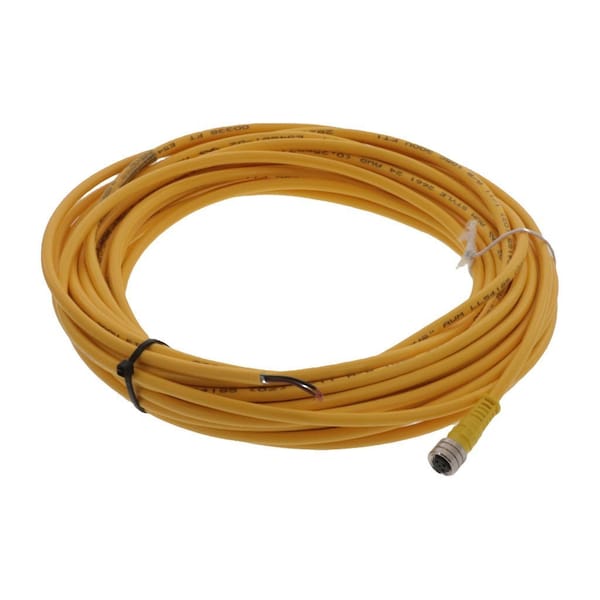

NC 3P FP 5M COUPLER 24AWG PVC

  • Mfr # 1200860107

  • Zoro # G4037729

product price:
$
28.35
/ea
Sold in multiples of 3 for $85.05

Key Features

Wire Size AWG
24
Material - Coupling Nut
Nickel-plated Brass
Orientation
Straight to Pigtail
Voltage - Maximum
60V AC / 75V DC
UL
E152210
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200860107
Zoro #
G4037729
UPC #
78678811279
Country of Origin
Mexico

Dimensions

Wire Size AWG
24
Cable Diameter
4.32mm (.170")
Cable Length
5.0m (16.40')

Details

Material - Coupling Nut
Nickel-plated Brass
Orientation
Straight to Pigtail
Voltage - Maximum
60V AC / 75V DC
UL
E152210
Material - O-Ring
Fluoro-elastomer
Material - Cable Jacket
PVC
Color - Cable Jacket
Yellow
Current - Maximum per Contact
3.0A
CSA
LR6837
Gender
Female-Pigtail
Temperature Range - Operating
-20°C to +105°C
Wire/Cable Type
UL 2661
Coupling Style
Threaded
Material - Plating Mating
Gold
Poles
3
Material - Connector Body
TPE
Keyway
A-coded
Connector End A
Nano-Change (M8)
Series
120086
Connector End B
Pigtail
IP Rating
IP67
LED Indicator
No
Material - Contact
Copper Alloy
Type
Single Ended
Product Name
Nano-Change (M8)
