Shop MOLEX

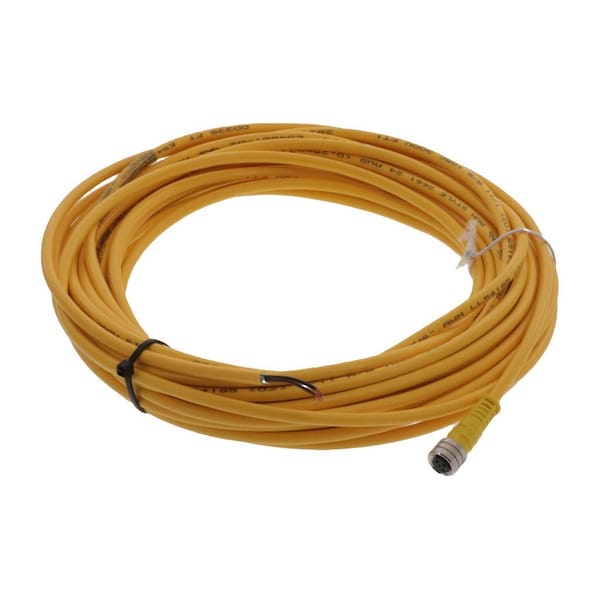

NC 4P FP 5M COUPLER 24AWG PVC

  • Mfr # 1200860147

  • Zoro # G4031289

product price:
$
51.95
/ea
Sold in multiples of 2 for $103.90

Key Features

Current - Maximum per Contact
3.0A
Material - Coupling Nut
Nickel-plated Brass
Wire/Cable Type
UL 2661
Temperature Range - Operating
-20°C to +105°C
Cable Length
5.0m (16.40')
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200860147
Zoro #
G4031289
UPC #
78678832852
Country of Origin
Mexico

Dimensions

Cable Length
5.0m (16.40')
Wire Size AWG
24
Cable Diameter
4.57mm (.180")

Details

Current - Maximum per Contact
3.0A
Material - Coupling Nut
Nickel-plated Brass
Wire/Cable Type
UL 2661
Temperature Range - Operating
-20°C to +105°C
Material - O-Ring
Fluoro-elastomer
Coupling Style
Threaded
UL
E152210
Poles
4
CSA
LR6837
Keyway
A-coded
Voltage - Maximum
60V AC / 75V DC
Orientation
Straight to Pigtail
Material - Cable Jacket
PVC
Material - Plating Mating
Gold
Gender
Female-Pigtail
Color - Cable Jacket
Yellow
Material - Connector Body
TPE
IP Rating
IP67
Connector End B
Pigtail
Product Name
Nano-Change (M8)
LED Indicator
No
Type
Single Ended
Connector End A
Nano-Change (M8)
Material - Contact
Copper Alloy
Series
120086
