Shop MOLEX

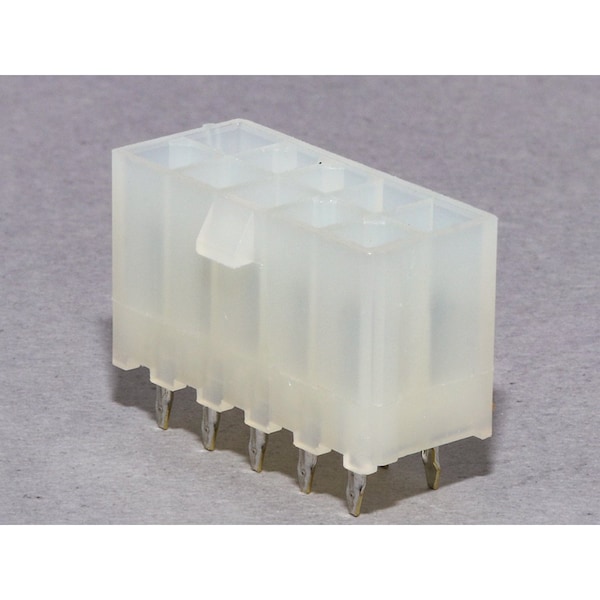

New Mini Fit Header Assy 10Ckt

  • Mfr # 39-28-1103

  • Zoro # G4040483

product price:  $1.39
/ea
Sold in multiples of 75 for $104.25

Key Features

Circuits (Loaded)
10
Color - Resin
Natural
Current - Maximum per Contact
9.0A
Material - Plating Termination
Tin
UL
E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-1103
Zoro #
G4040483
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Circuits (Loaded)
10
Color - Resin
Natural
Current - Maximum per Contact
9.0A
Material - Plating Termination
Tin
UL
E29179
Material - Plating Mating
Tin
Plating min - Mating
0.889µm
Duration at Max. Process Temperature (seconds)
5
CSA
LR19980
PCB Locator
Yes
Durability (mating cycles max)
30
Number of Rows
2
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Orientation
Vertical
Flammability
94V-2
Temperature Range - Operating
-40° to +105°C
Termination Interface: Style
Through Hole
Process Temperature max. C
240
Material - Resin
Nylon
Max. Cycles at Max. Process Temperature
1
Pitch - Termination Interface
4.20mm
Shrouded
Fully
Circuits (maximum)
10
Lock to Mating Part
Yes
Pitch - Mating Interface
4.20mm
Material - Metal
Brass
Voltage - Maximum
600V
Plating min - Termination
0.889µm
