  11. New Mini Fit Header Assy 12Ckt

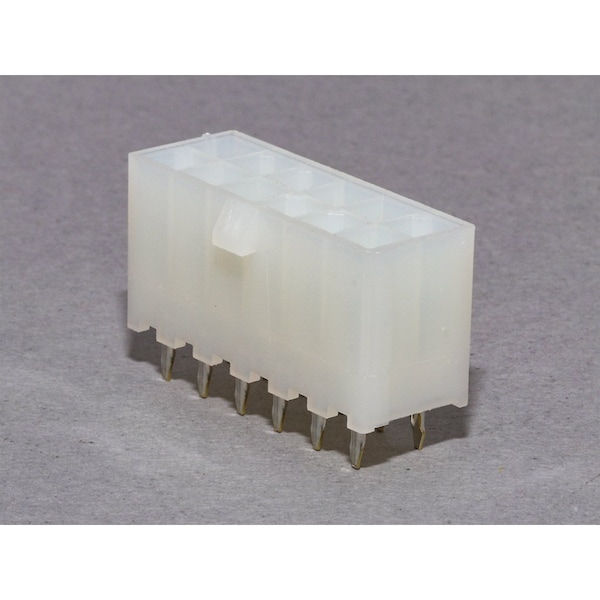

Molex New Mini Fit Header Assy 12Ckt 39-28-1123 - main

New Mini Fit Header Assy 12Ckt

  • Mfr # 39-28-1123

  • Zoro # G4040072

product price: $1.29
/ea
Sold in multiples of 70 for $90.30

Key Features

Voltage - Maximum
600V
Shrouded
Fully
Plating min - Termination
0.889µm
Process Temperature max. C
240
Orientation
Vertical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-28-1123
Zoro #
G4040072
UPC #
-
Country of Origin
United States

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Voltage - Maximum
600V
Shrouded
Fully
Plating min - Termination
0.889µm
Process Temperature max. C
240
Orientation
Vertical
Pitch - Termination Interface
4.20mm
Number of Rows
2
Termination Interface: Style
Through Hole
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
Material - Metal
Brass
UL
E29179
Duration at Max. Process Temperature (seconds)
5
Material - Resin
Nylon
Current - Maximum per Contact
9.0A
Color - Resin
Natural
Lock to Mating Part
Yes
CSA
LR19980
Pitch - Mating Interface
4.20mm
Durability (mating cycles max)
30
Flammability
94V-2
Max. Cycles at Max. Process Temperature
1
Plating min - Mating
0.889µm
Circuits (Loaded)
12
Circuits (maximum)
12
Material - Plating Mating
Tin
PCB Locator
Yes
