Shop MOLEX

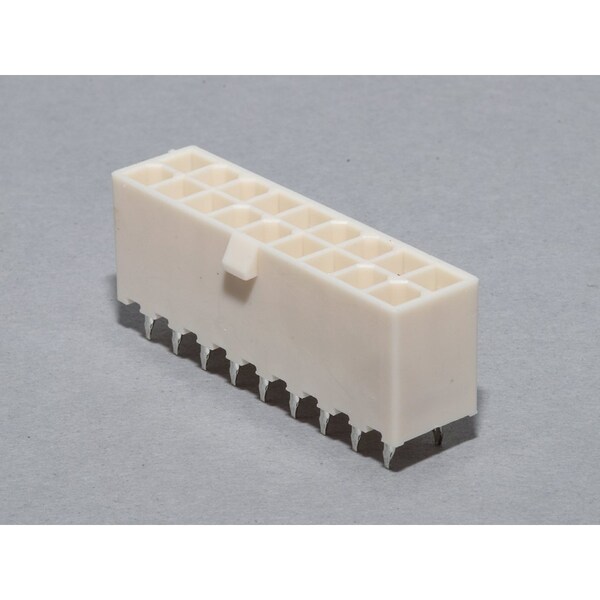

New Mini Fit Header Assy 18Ckt

  • Mfr # 39-28-8180

  • Zoro # G4030753

product price:  $2.89
/ea
Sold in multiples of 31 for $89.59

Key Features

PCB Locator
Yes
Material - Metal
Brass
Flammability
94V-0
Termination Interface: Style
Through Hole
CSA
LR19980
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-8180
Zoro #
G4030753
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

PCB Locator
Yes
Material - Metal
Brass
Flammability
94V-0
Termination Interface: Style
Through Hole
CSA
LR19980
Max. Cycles at Max. Process Temperature
1
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
Plating min - Termination
0.889µm
Plating min - Mating
0.889µm
Current - Maximum per Contact
9.0A
Duration at Max. Process Temperature (seconds)
5
Voltage - Maximum
600V
Circuits (maximum)
18
Color - Resin
Natural
Pitch - Mating Interface
4.20mm
Material - Resin
Nylon
Shrouded
Fully
Polarized to Mating Part
Yes
Orientation
Vertical
Material - Plating Mating
Tin
Lock to Mating Part
Yes
Circuits (Loaded)
18
Pitch - Termination Interface
4.20mm
Polarized to PCB
Yes
UL
E29179
Number of Rows
2
Durability (mating cycles max)
30
Process Temperature max. C
240
