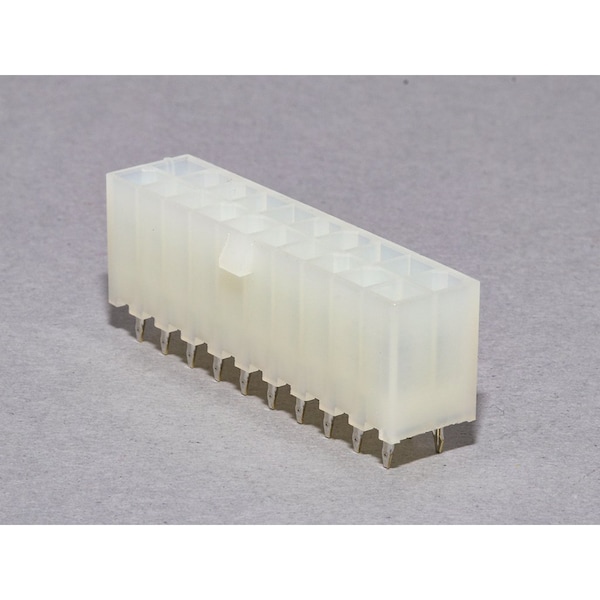

New Mini Fit Header Assy 20Ckt

  • Mfr # 39-28-1203
  • Zoro # G4038919
product price:
$
2.89
/ea
Sold in multiples of 55 for $158.95

Key Features

Lock to Mating Part
Yes
Material - Metal
Brass
UL
E29179
Plating min - Termination
0.889µm
Temperature Range - Operating
-40° to +105°C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-1203
Zoro #
G4038919
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Lock to Mating Part
Yes
Material - Metal
Brass
UL
E29179
Plating min - Termination
0.889µm
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
Voltage - Maximum
600V
Process Temperature max. C
240
Shrouded
Fully
Termination Interface: Style
Through Hole
Orientation
Vertical
Pitch - Mating Interface
4.20mm
Material - Resin
Nylon
Pitch - Termination Interface
4.20mm
Max. Cycles at Max. Process Temperature
1
Material - Plating Termination
Tin
Durability (mating cycles max)
30
Circuits (maximum)
20
Flammability
94V-2
Circuits (Loaded)
20
Number of Rows
2
Plating min - Mating
0.889µm
Color - Resin
Natural
CSA
LR19980
Material - Plating Mating
Tin
Current - Maximum per Contact
9.0A
Polarized to PCB
Yes
PCB Locator
Yes
Duration at Max. Process Temperature (seconds)
5
