Shop MOLEX

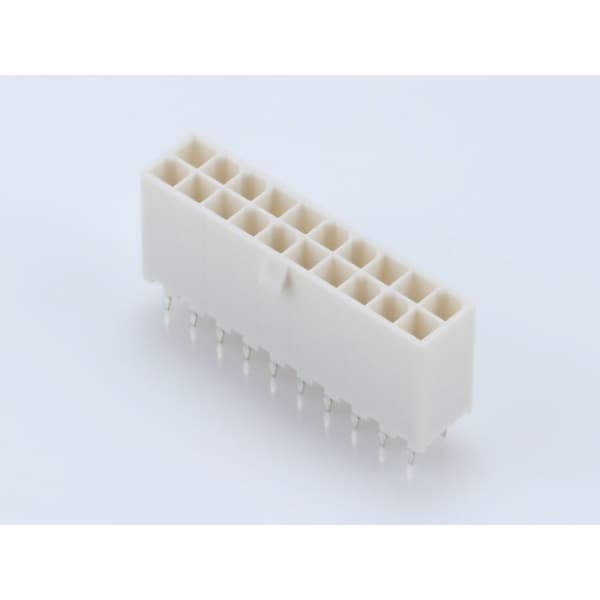

New Mini Fit Header Assy 20Ckt

  • Mfr # 39-28-8200

  • Zoro # G7767572

product price:
$
2.95
/ea
Sold in multiples of 41 for $120.95

Key Features

PC Tail Length
3.50mm
Material - Metal
Brass
Number of Rows
2
Termination Interface: Style
Through Hole
Plating min - Termination
0.889µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-8200
Zoro #
G7767572
UPC #
-
Country of Origin
Unknown

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Material - Metal
Brass
Number of Rows
2
Termination Interface: Style
Through Hole
Plating min - Termination
0.889µm
Pitch - Termination Interface
4.20mm
PCB Locator
Yes
Lock to Mating Part
Yes
Current - Maximum per Contact
9.0A
Process Temperature max. C
240
Polarized to PCB
Yes
Durability (mating cycles max)
30
Temperature Range - Operating
-40° to +105°C
UL
E29179
Circuits (Loaded)
20
CSA
LR19980
Duration at Max. Process Temperature (seconds)
5
Material - Plating Termination
Tin
Material - Plating Mating
Tin
Color - Resin
Natural
Circuits (maximum)
20
Pitch - Mating Interface
4.20mm
Material - Resin
Nylon
Voltage - Maximum
600V
Shrouded
Fully
Max. Cycles at Max. Process Temperature
1
Flammability
94V-0
Polarized to Mating Part
Yes
Plating min - Mating
0.889µm
Orientation
Vertical
