Shop MOLEX

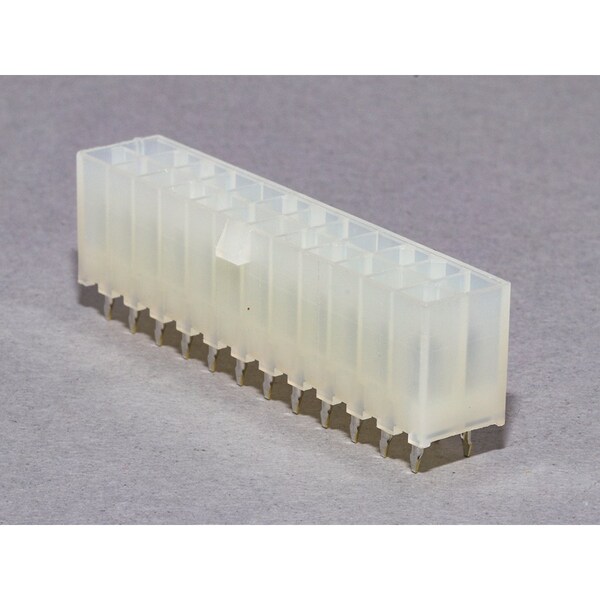

New Mini Fit Header Assy 24Ckt

  • Mfr # 39-28-1243

  • Zoro # G4038821

product price:  $3.25
/ea
Sold in multiples of 35 for $113.75

Key Features

Circuits (Loaded)
24
Color - Resin
Natural
UL
E29179
Pitch - Mating Interface
4.20mm
Max. Cycles at Max. Process Temperature
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-1243
Zoro #
G4038821
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Circuits (Loaded)
24
Color - Resin
Natural
UL
E29179
Pitch - Mating Interface
4.20mm
Max. Cycles at Max. Process Temperature
1
Material - Plating Termination
Tin
Material - Plating Mating
Tin
Termination Interface: Style
Through Hole
Voltage - Maximum
600V
Process Temperature max. C
240
Plating min - Termination
0.889µm
Material - Metal
Brass
Flammability
94V-2
Durability (mating cycles max)
30
CSA
LR19980
PCB Locator
Yes
Shrouded
Fully
Circuits (maximum)
24
Duration at Max. Process Temperature (seconds)
5
Current - Maximum per Contact
9.0A
Number of Rows
2
Lock to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Polarized to PCB
Yes
Pitch - Termination Interface
4.20mm
Plating min - Mating
0.889µm
Material - Resin
Nylon
Orientation
Vertical
Polarized to Mating Part
Yes
