  11. New Mini Fit Header Assy 2Ckt

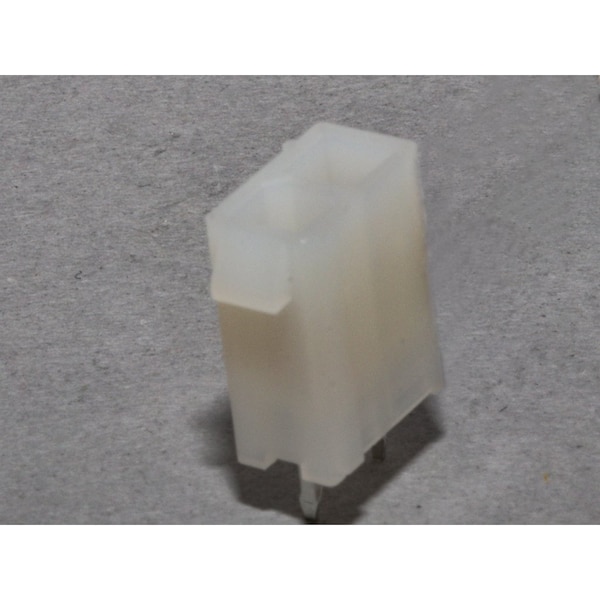

Molex New Mini Fit Header Assy 2Ckt 39-29-0023 - main

New Mini Fit Header Assy 2Ckt

  • Mfr # 39-29-0023

  • Zoro # G4036791

product price: $1.15
/ea
Sold in multiples of 150 for $172.50

Key Features

Duration at Max. Process Temperature (seconds)
5
CSA
LR19980
Pitch - Mating Interface
4.20mm
Circuits (maximum)
2
Plating min - Termination
2.540µm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-29-0023
Zoro #
G4036791
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Duration at Max. Process Temperature (seconds)
5
CSA
LR19980
Pitch - Mating Interface
4.20mm
Circuits (maximum)
2
Plating min - Termination
2.540µm
Voltage - Maximum
600V
Process Temperature max. C
260
Color - Resin
Natural
UL
E29179
Material - Plating Mating
Gold
Termination Interface: Style
Through Hole
Polarized to PCB
Yes
Plating min - Mating
0.762µm
Material - Resin
Nylon
Circuits (Loaded)
2
Material - Plating Termination
Matte Tin
Current - Maximum per Contact
9.0A
Material - Metal
Brass
Lock to Mating Part
Yes
Polarized to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
Number of Rows
2
Pitch - Termination Interface
4.20mm
Durability (mating cycles max)
30
Orientation
Vertical
PCB Locator
Yes
Flammability
94V-2
Max. Cycles at Max. Process Temperature
1
