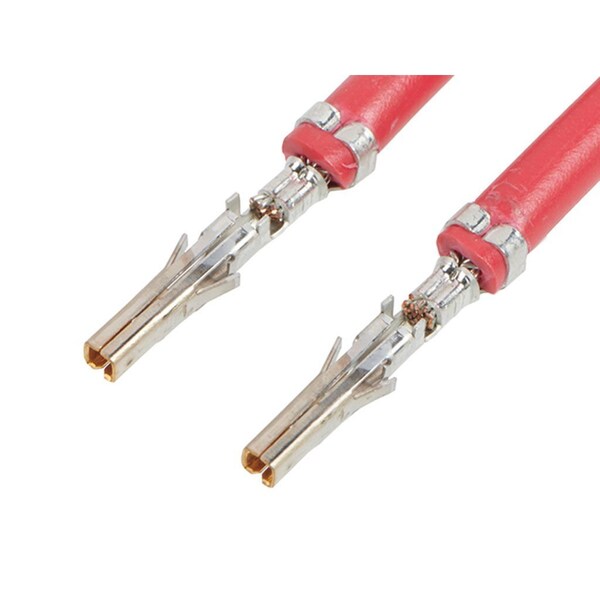

Pre-Crimped Lead Mini-Fit Jr. Female-To-Mini-Fit Jr. Female, Gold (Au) Plating
Mfr # 2153402224
Zoro # G905922619
product price:Â $1.29
/ea
Sold in multiples of 95 for $122.55
Key Features
Application
Power, Wire-to-Board, Wire-to-Wire
Conductor Material
Brass
Max. Amps
9 A
Standards
UL 1015
Wire Gauge
16 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2153402224
- Zoro #
- G905922619
- UPC #
- -
- Country of Origin
- Thailand
Dimensions
- Spool Length
- 300 mm
- Wire Insulation Diameter
- 1.80-3.10mm
- Wire Size (AWG)
- 16
- Cable Length
- 300.00mm
Details
- Application
- Power, Wire-to-Board, Wire-to-Wire
- Conductor Material
- Brass
- Max. Amps
- 9 A
- Standards
- UL 1015
- Wire Gauge
- 16 AWG
- Jacket Color
- Red
- Voltage
- 600V
- Material - Plating Termination
- Tin
- Product Name
- Mini-Fit Jr.
- Material - Plating Mating
- Gold
- Series
- 215340
- Assembly Configuration
- Pre-crimped Lead Only
- Termination Interface Style
- Crimp or Compression
- Gender
- Female-Female
- Single Ended
- No
- Circuits (Loaded)
- 1
- Current - Maximum per Contact
- 9.0A
- Connector to Connector
- Mini-Fit Jr. Crimp Terminals
