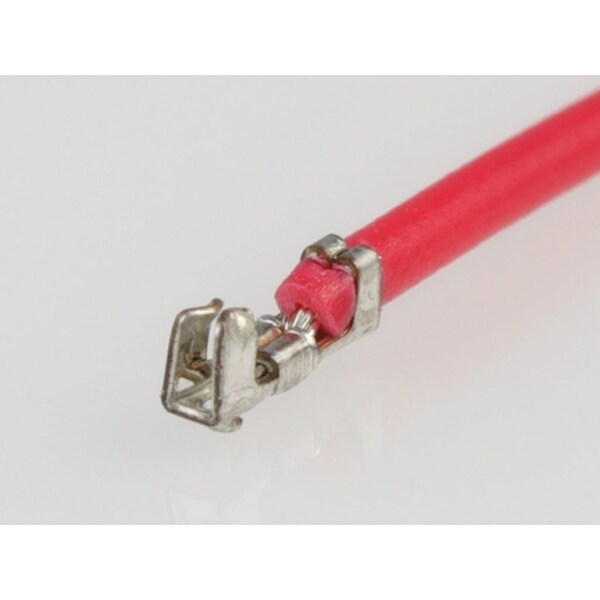

Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold (Au) Plating, 450.00Mm (Discontinued)
- Mfr # 2149212225
- Zoro # G105925786
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
2149212225
Zoro #
G105925786
UPC #
-
Country of Origin
India
Dimensions
Cable Length
450.00mm
Wire Size AWG
26
Wire Insulation Diameter
1.04mm max.
Details
Series
214921
Circuits (Loaded)
1
Voltage - Maximum
125V AC (RMS)/DC
Pitch - Mating Interface
1.25mm
Current - Maximum per Contact
1.0A
Termination Interface: Style
Crimp or Compression
Material - Plating Mating
Gold
Material - Metal
Phosphor Bronze
Single Ended
Yes
Color - Resin
Red
Wire/Cable Type
UL 1061
Material - Plating Termination
Tin
Plating min - Mating
0.380µm
Gender
Female-Pigtail
Assembly Configuration
Pre-crimped Lead Only
Product Name
PicoBlade
Connector to Connector
PicoBlade Terminal-to-Pigtail
