This item is Discontinued.

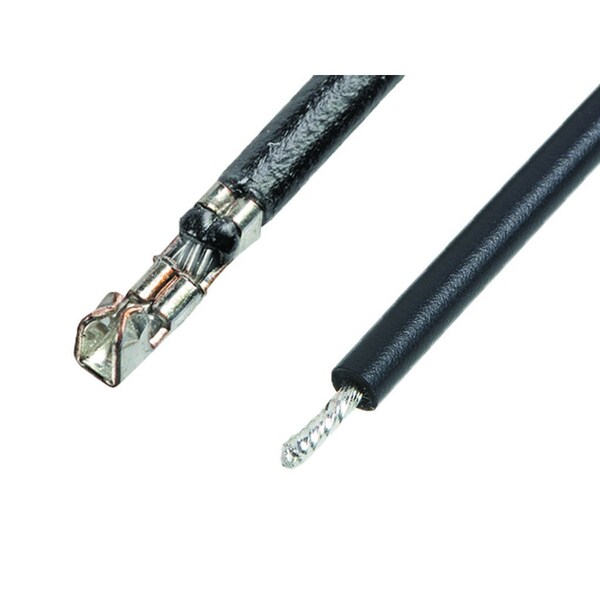

Molex Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 300.00Mm Length 2149211114

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 300.00Mm Length (Discontinued)

  • Mfr # 2149211114
  • Zoro # G205926003
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2149211114
Zoro #
G205926003
UPC #
-
Country of Origin
Thailand

Dimensions

Cable Length
300.00mm
Wire Insulation Diameter
1.04mm max.
Wire Size AWG
28

Details

Material - Plating Mating
Tin
Single Ended
Yes
Current - Maximum per Contact
1.0A
Material - Plating Termination
Tin
Circuits (Loaded)
1
Gender
Female-Pigtail
Voltage - Maximum
125V AC (RMS)/DC
Pitch - Mating Interface
1.25mm
Plating min - Mating
0.889µm
Wire/Cable Type
UL 1061
Termination Interface: Style
Crimp or Compression
Material - Metal
Phosphor Bronze
Color - Resin
Black
