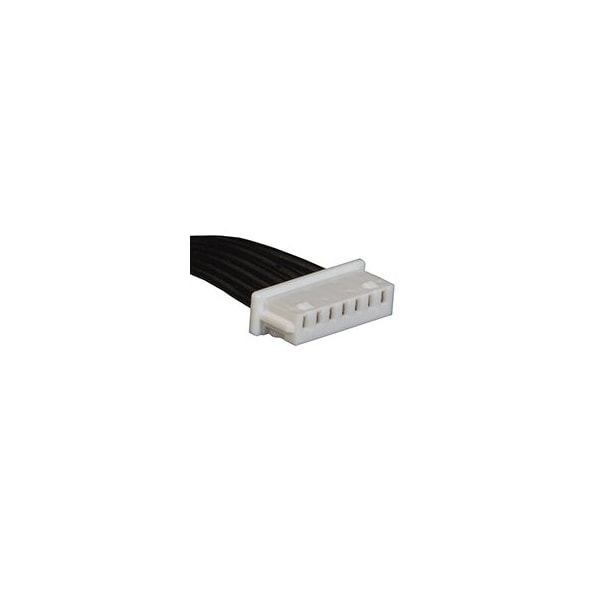

Rectangular Cable Assemblies 7 Circuit 450Mm Picoblade
Mfr # 151340705
Zoro # G105925649
product price:Â
$
4.39
/ea
Sold in multiples of 20 for $87.80
Key Features
Cable Length
450.00mm
Gender
Female-Female
Wire Size AWG
28
Lock to Mating Part
Yes
Voltage - Maximum
125V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 151340705
- Zoro #
- G105925649
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Length
- 450.00mm
- Wire Size AWG
- 28
- Wire Insulation Diameter
- 0.90mm
Details
- Gender
- Female-Female
- Lock to Mating Part
- Yes
- Voltage - Maximum
- 125V
- Material - Metal
- Phosphor Bronze
- Number of Rows
- 1
- Color - Resin
- Natural
- Circuits (Loaded)
- 7
- Termination Interface: Style
- Crimp or Compression
- Material - Plating Mating
- Tin
- Plating min - Termination
- 0.914µm
- Material - Resin
- Polyester
- Pitch - Mating Interface
- 1.25mm
- Plating min - Mating
- 0.889µm
- Wire/Cable Type
- UL 1061
- Material - Plating Termination
- Tin
- Current - Maximum per Contact
- 1.0A
