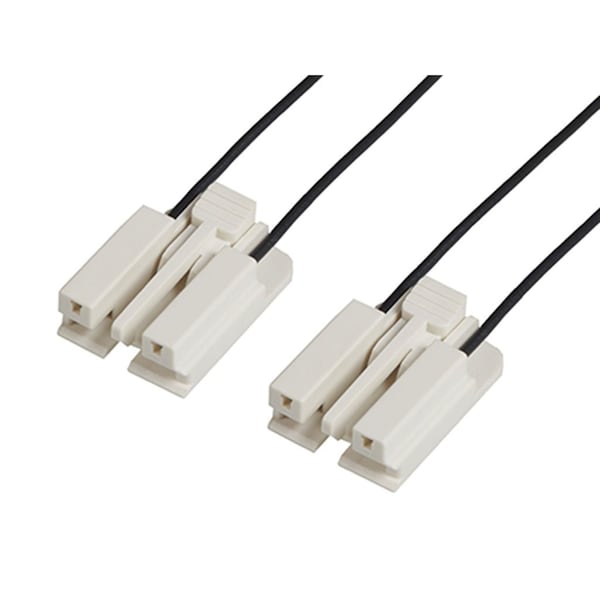

Rectangular Cable Assemblies Edge Lock R-R 2Ckt 150Mm Sn
- Mfr # 2163301022
- Zoro # G505925713
product price:Â
$
3.95
/ea
Sold in multiples of 20 for $79.00
Key Features
Type
Discrete Wire Assembly
Series
216330
Application
Signal, Wire-to-Board
Cable Length
150.00mm
Circuits (Loaded)
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2163301022
- Zoro #
- G505925713
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 150.00mm
- Wire Size AWG
- 22
- Wire Insulation Diameter
- 1.10-1.40mm
Details
- Type
- Discrete Wire Assembly
- Series
- 216330
- Application
- Signal, Wire-to-Board
- Circuits (Loaded)
- 2
- Material - Plating Mating
- Tin
- Current - Maximum per Contact
- 3.0A
- Termination Interface: Style
- Crimp or Compression, Straddle Mount-Edge Card
- Material - Resin
- Nylon
- Pitch - Mating Interface
- 2.00mm
- Voltage - Maximum
- 125V
- Material - Metal
- Phosphor Bronze
- Wire/Cable Type
- UL 10002
- Material - Plating Termination
- Tin
- Plating min - Mating
- 1.000µm
- Color - Resin
- Black
- Single Ended
- No
- Product Name
- EdgeLock
- Assembly Configuration
- Dual Ended Connectors
- Number of Rows
- 1
- Connector to Connector
- Edgelock-to-Edgelock
- Overmolded
- No
