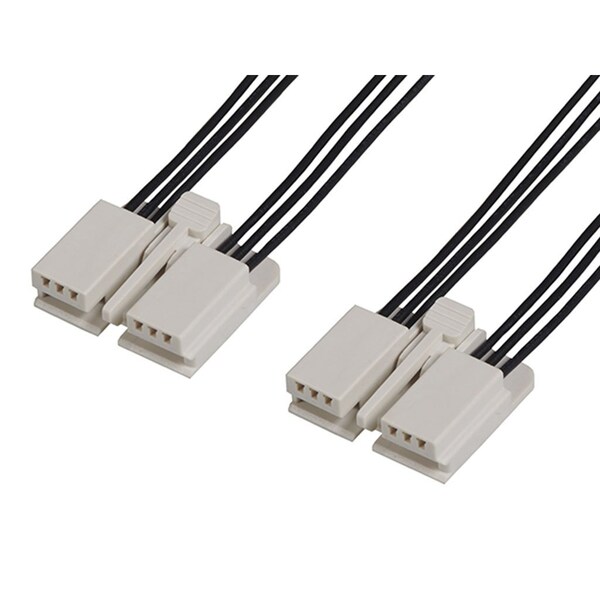

Rectangular Cable Assemblies Edge Lock R-R 6Ckt 100Mm Sn
Mfr # 2163301061
Zoro # G405925936
product price:Â
$
8.69
/ea
Sold in multiples of 10 for $86.90
Key Features
Cable Length
100.00mm
Type
Discrete Wire Assembly
Series
216330
Application
Signal, Wire-to-Board
Plating min - Mating
1.000µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2163301061
- Zoro #
- G405925936
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 100.00mm
- Wire Insulation Diameter
- 1.10-1.40mm
- Wire Size AWG
- 22
Details
- Type
- Discrete Wire Assembly
- Series
- 216330
- Application
- Signal, Wire-to-Board
- Plating min - Mating
- 1.000µm
- Wire/Cable Type
- UL 10002
- Color - Resin
- Black
- Termination Interface: Style
- Crimp or Compression, Straddle Mount-Edge Card
- Material - Resin
- Nylon
- Circuits (Loaded)
- 6
- Material - Metal
- Phosphor Bronze
- Material - Plating Termination
- Tin
- Pitch - Mating Interface
- 2.00mm
- Current - Maximum per Contact
- 3.0A
- Material - Plating Mating
- Tin
- Voltage - Maximum
- 125V
- Overmolded
- No
- Connector to Connector
- Edgelock-to-Edgelock
- Assembly Configuration
- Dual Ended Connectors
- Single Ended
- No
- Number of Rows
- 1
- Product Name
- EdgeLock
