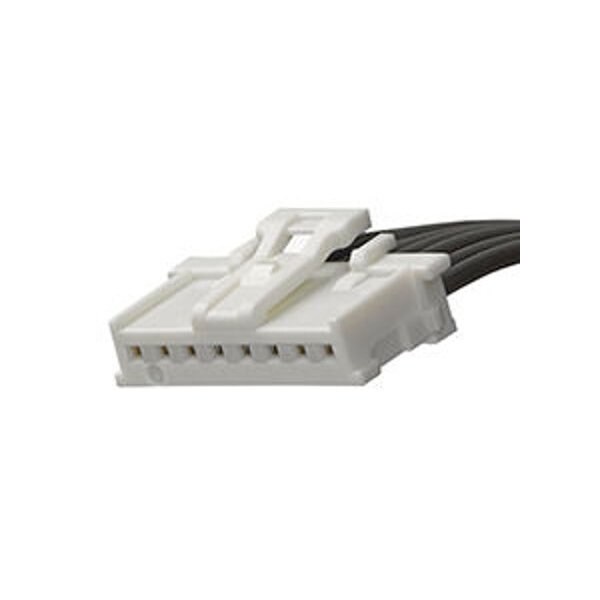

Rectangular Cable Assemblies Microclasp 8Ckt Cbl Assy Sr 100Mm White

  • Mfr # 151360801

  • Zoro # G905926051

product price:
$
4.83
/ea
Sold in multiples of 15 for $72.45

Key Features

Application
Signal, Wire-to-Board
Cable Length
100.00mm
Series
15136
Type
Discrete Wire Assembly
Wire/Cable Type
UL 1061
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
151360801
Zoro #
G905926051
UPC #
-
Country of Origin
China

Dimensions

Cable Length
100.00mm
Wire Insulation Diameter
1.28mm
Wire Size AWG
22

Details

Application
Signal, Wire-to-Board
Series
15136
Type
Discrete Wire Assembly
Wire/Cable Type
UL 1061
Termination Interface: Style
Crimp or Compression
Gender
Female-Female
Plating min - Mating
0.889µm
Material - Metal
Phosphor Bronze
Number of Rows
1
Material - Plating Termination
Tin
Material - Resin
Nylon
Material - Plating Mating
Tin
Pitch - Mating Interface
2.00mm
Voltage - Maximum
250V AC (RMS)/DC
Lock to Mating Part
Yes
Color - Resin
White
Plating min - Termination
0.914µm
Circuits (Loaded)
8
Current - Maximum per Contact
3.0A
Assembly Configuration
Dual Ended Connectors
Product Name
MicroClasp
Overmolded
No
Single Ended
No
Connector to Connector
MicroClasp-to-MicroClasp
