  9. Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle

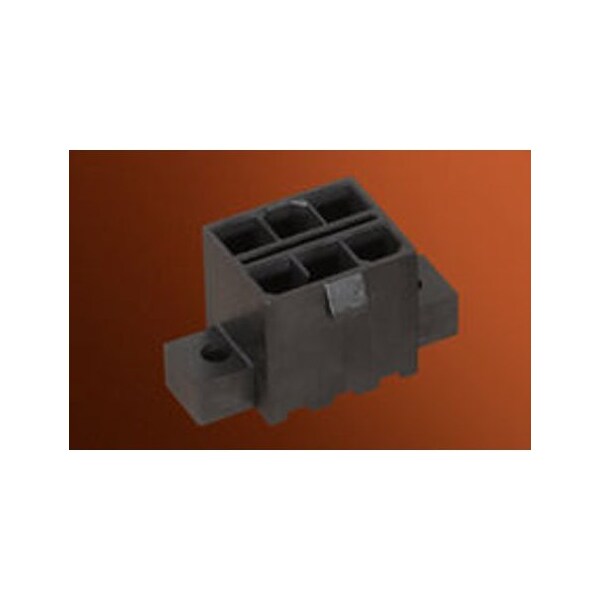

Molex Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle 15977102 - main

Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 15977102

  • Zoro # G405910062

product price: $1.95
/ea
Sold in multiples of 55 for $107.25

Key Features

Number of Rows
2
Series
30069
Application
Power, Wire-to-Board
Polarized to Mating Part
Yes
Current - Maximum per Contact
13.0A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15977102
Zoro #
G405910062
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.80mm

Details

Number of Rows
2
Series
30069
Application
Power, Wire-to-Board
Polarized to Mating Part
Yes
Current - Maximum per Contact
13.0A
Material - Metal
Brass
Guide to Mating Part
No
Stackable
No
Component Type
PCB Header
Product Name
Mini-Fit TPA
PCB Locator
Yes
First Mate / Last Break
No
Material - Resin
Polyester
Glow-Wire Capable
No
Lock to Mating Part
Yes
Termination Interface Style
Through Hole
Temperature Range - Operating
-40° to +105°C
Plating min - Mating
0.889µm
Max-Duration
5
Max-Temp
240
Polarized to PCB
Yes
Circuits (Loaded)
10
Pitch - Mating Interface
4.20mm
Color - Resin
Black
Material - Plating Mating
Tin
Keying to Mating Part
None
Material - Plating Termination
Tin
Orientation
Vertical
Voltage - Maximum
600V
PCB Retention
Yes
Durability (mating cycles max)
30
Breakaway
No
CSA
LR19980
UL
E29179
Flammability
94V-0
Shrouded
Partial
Max-Cycle
1
