  10. /
  11. Insulated Multitap Connector, 4.57 In. L
Shop All Mechanical Lugs
Polaris

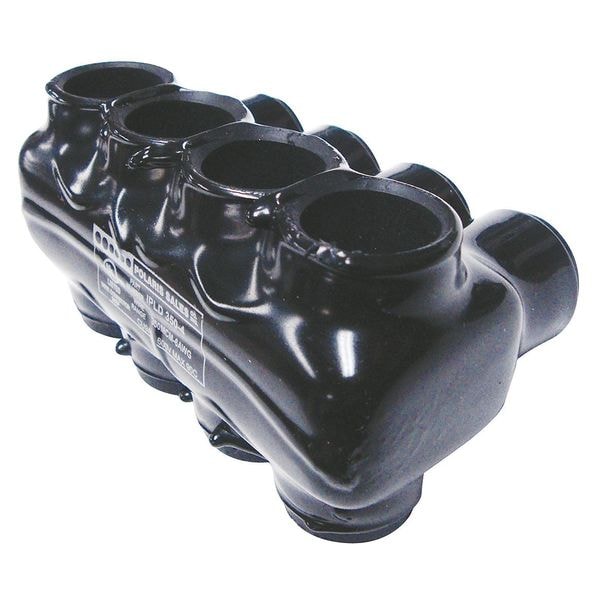

Insulated Multitap Connector, 4.57 In. L

product price: $61.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 4
  • Min. Conductor Size 6 AWG
  • Max. Conductor Size 350 kcmil
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 6 AWG
Max. Conductor Size 350 kcmil
Stud Size 5/16 in
Length 4.57 in
Width 2.5 in
Length (Straight Wireway) 4.57 in
For Stranded Copper Wire Size - Minimum 6 AWG
For Stranded Copper Wire Size - Maximum 350 kcmil
Strip Length 1 1/2 in
Hex Size 5/16 in
Overall Width 2.41 in
For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 6 AWG
Overall Length 4.57 in
Hex Wrench Size 5/16
Conductor Al Size Range 350 MCM – 10 AWG
Conductor Cu Size Range 350 MCM – 10 AWG

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 4
Insulation Material Plastisol
Max. Voltage 600V AC/DC
Direct Burial Rated No
Body Material Aluminum
Head Style Hex
Standards cULus, UL 486A
Screw Material Steel
Finish Plastisol
Number of Ports 4
Compatible with Product Type Copper and Aluminum Cables
Screw Finish Tin Plated
Minimum Operating Temperature -49 Degrees F
Maximum Voltage 600 V
Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close the Entry Port Not Being Utilized, UV Resistant, Will Not Support Combustion, Wire Entry Ports on Both Sides of the Connector Allow for Access From Either Side
RoHS Compliant Yes
Color Black
Torque 400 in-lb
Maximum Operating Temperature 194 Degrees F
Tap Shape Z
For Conductor Material Aluminum, Copper
Assortment Black UV Coated Pre-Insulated Connectors
Cu Conductor Max Amp 657
Ul File No E186991
Certifications cULus
Conductor Type Copper, Aluminum
Max Torque 400
Wire Cable Class Class B, Class C
Temp Rating 90C, AL9CU
Conductors Count 4
Ul Standard UL 486A/B
Env Temp Cold Temperature rated to -45C
Al Conductor Max Amp 514

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables
