  9. Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Plug

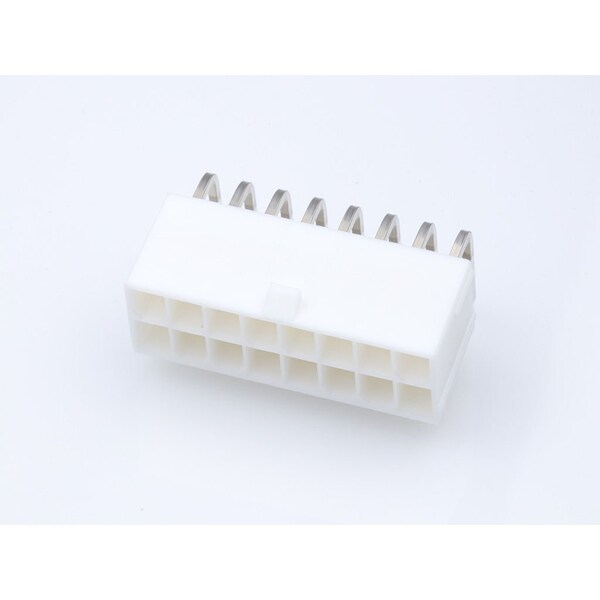

Molex Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Plug 39301162 - main

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Plug

  • Mfr # 39301162

  • Zoro # G705911141

product price: $6.69
/ea
Sold in multiples of 20 for $133.80

Key Features

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39301162
Zoro #
G705911141
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.78mm

Details

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Max. Temp.
240°C
Standards
CSA Certified; UL E29179
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Number of Contacts
16
Terminal Finish
Matte Tin Plated
Contact Finish
Gold Plated
Current Rating
13 A
Flammability Rating
UL 94V-0
Keying to Mating Part
None
First Mate / Last Break
No
Material - Plating Termination
Matte Tin
PCB Retention
Yes
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Max-Cycle
1
Component Type
PCB Header
Max-Duration
5
PCB Locator
Yes
Lock to Mating Part
Yes
Material - Resin
Nylon
Plating min - Mating
0.762µm
Max-Temp
240
Orientation
Right Angle
Circuits (Loaded)
16
Stackable
No
Pitch - Mating Interface
4.20mm
Breakaway
No
Current - Maximum per Contact
13.0A
Durability (mating cycles max)
30
Guide to Mating Part
No
Product Name
Mini-Fit Jr.
Material - Plating Mating
Gold
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
CSA
LR19980
Material - Metal
Brass
Shrouded
Fully
UL
E29179
Flammability
94V-0
